ProfiMessage

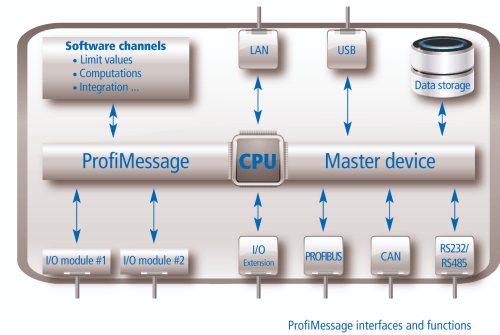

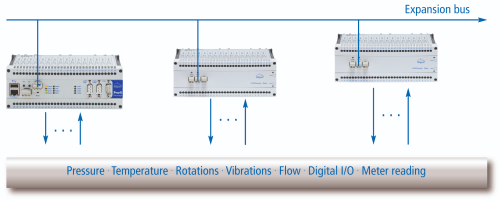

ProfiMessage devices have been specially developed for use as modular measurement, control and monitoring units. ProfiMessage uses a master/slave concept and has a range of I/O modules to meet the requirements of any system. This enables the problem-free functioning of multi-channel systems.
ProfiMessage devices have universal connectivity to any process. They also have flexible I/O modules and a diverse range of field bus interfaces. ProfiMessage is extremely easy to connect to PLC control systems to perform data exchange. All measurement data is recorded at high temporal resolution.ProfiMessage has integrated control, calculation and monitoring functions which make it the ideal combination device. Measurement data can be simultaneously
acquired and monitored with control and regulation tasks being independently processed.
ProfiMessage devices for independent measurement and recording. Up to 14 GB data memory is able to record several million measurement values. At the
click of a button the data can be transferred to a USB stick and evaluated offline. Data read outs can also take place online via an Ethernet interface.
These can be performed manually or automatically according to a time plan. ProfiMessage is ideal for fast, precise and galvanically isolated measurement
data, as well as for intelligent pre-processing and monitoring. Applications range from the monitoring and observation of industrial processes
and machinery through to vibration measurement technology.
Features:
- Secure and stand alone data acquisition
- Compact, modular design

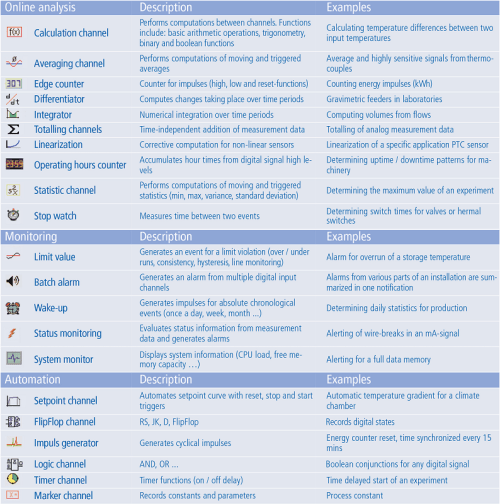

- Monitoring and automation functions
- Combined process and vibration data

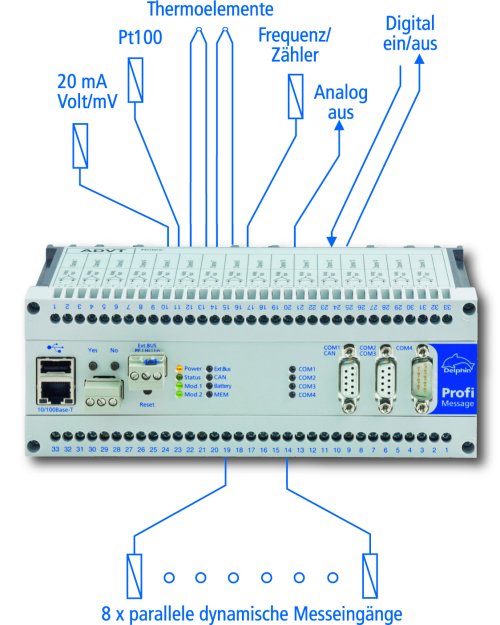

- Universal analog inputs with high precision capability
- Galvanic isolation across channels
- Simple, intuitive configuration and operation
- Ethernet interface for online operation
- USB interface for data memory read out
- Two PROFIBUS interfaces (single or redundant, according to PNO 2.212 V1.2)
Models available:

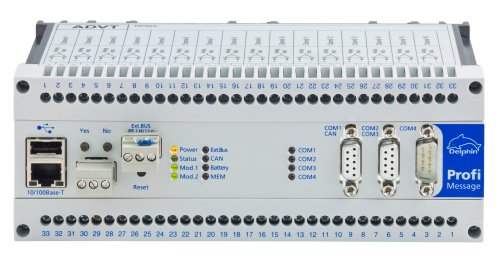

€ ProfiMessage - for industry: Industrial-grade, compact design for cabinet installations with Screw terminals. Depending on requirements, ProfiMessage
can be used in a mobile measurement case or as a fixed installation in a cabinet system. Delphin offers its services for individual planning and
installation.
€ ProfiLab - for the laboratory: Laboratory-proof, robust tabletop design with 4 mm laboratory or BNC connectors. The ProfiLab device with 4 mm laboratory
plugs is an alternative to the ProfiMessage model for mounting in cabinets on C-rails. The devices are identical apart from casings and connectors.
Further information is available under technical specifications.
Applications with ProfiMessage:
- Modular measurement data acquisition and monitoring
- Process data acquisition and preprocessing
- Fault data acquisition and fault diagnostics
- Acquisition, processing and recording of PLC and field bus signals
- Monitoring device for process and vibration signals
- Automation device for experiments and test stands
- Remote monitoring device for plant and machinery
