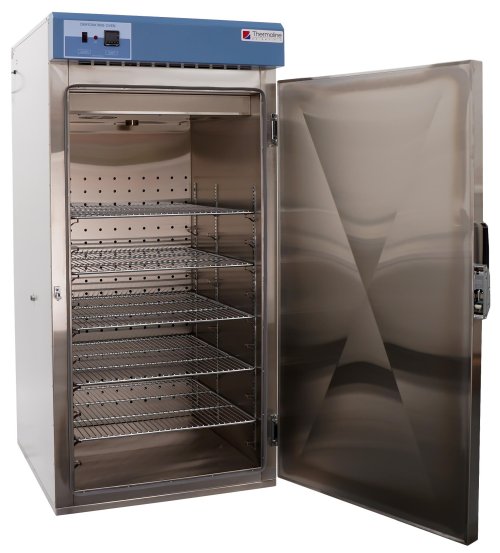

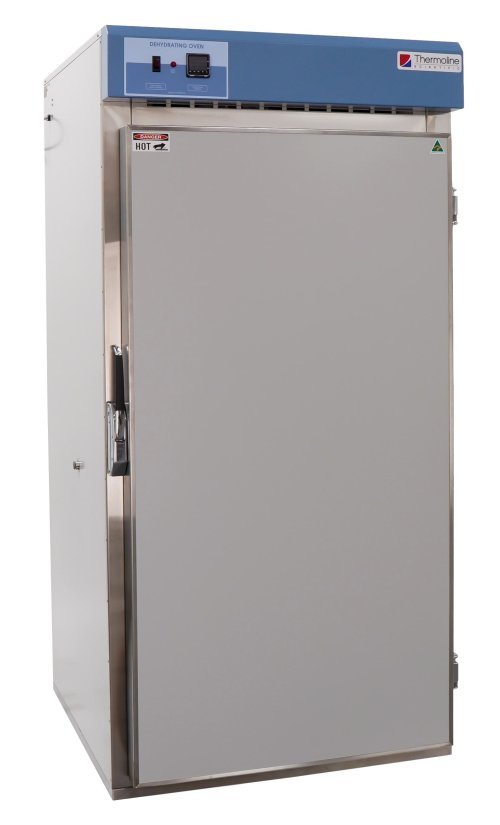

Premium Dehydrating Oven. (500 Litre)
The TD-500F out of Thermoline;s range of Dehydrating Ovens is designed to remove large quantities of moisture from products and samples. Typical applications include moisture removal from powder, soil, paper, timber, plaster, fabric, coal and many other minerals. The ovens of that range come in three sizes from 150 to 500 litres and feature a high air flow rate to ensure effective drying and chamber heating. An adjustable air inlet and an adjustable air
exhaust vent supply fresh air into the chamber while removing moist air from the chamber. Thermoline also manufactures large dehydration ovens designed
in conjunction with the Department of Primary Industries for soil testing.
Features:
- Long life high speed fan motors
- Adjustable chrome plated shelving
- Custom designed air handling system to provide heated air across each shelf position
- Large 50mm adjustable air inlet and adjustable exhaust outlet
- Control accuracy better then +/- 0.25 C
- Chamber spatial variation at 100 C of +/- 2 C (unloaded, vents closed)
- Sealed liner
- Auto over temperature safety (Failsafe)
- Over current protection
- Controller error codes for open CCT sensor or control malfunction
- Exterior of oven cool and safe to touch even when at maximum operating temperature
Specifications
Capacity |
500 |
Shelves |
5 |
Temperature Range |
Ambient +10 C to 200 C |
Temperature Uniformity |
2 C at 100 C (unloaded and vents closed) |
Dimensions:
