Precision Ultrasonic Wall Thickness Gauge kit. With Probe & Datalogger
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 14th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

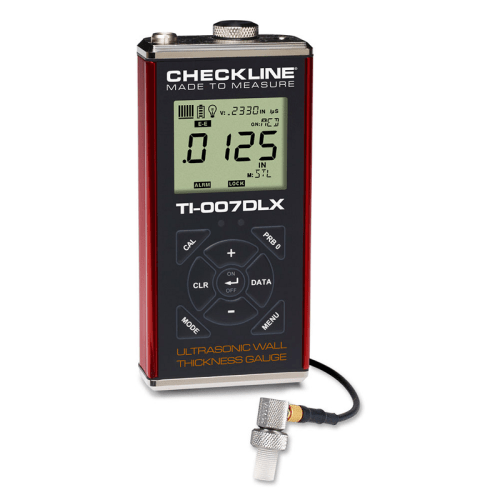

The TI-007DLX is a precision ultrasonic wall thickness gauge designed for high-resolution measurements on thin-wall metal and plastics. It is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments.
Regular price
$4,995.83 AUD
+ GST
$5,495.42 AUD Inc. GST
$5,495.42 AUD Inc. GST
The TI-007DLX is a precision ultrasonic wall thickness gauge designed for high-resolution measurements on thin-wall metal and plastics. It is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments.
The built-in data logger has a capacity of 10,000 data values stored in up to 40 batches with 250 values/batch which is transferred via the USB port using the supplied cable. The TI-007DLX does not require any software, it will be shown as a drive when connected to a PC allowing convenient drag-n-drop into your program of choice. Data is saved in a comma deliminated file format (.csv) which makes it compatible with all programs and software.
The TI-007DLX has measuring range in steel from 0.0060 to 1.0000 inch, (0.15 to 25.40 mm). Using a single element delay tip transducer, the gauges will measure thin materials and automatically remove any coatings in Echo-Echo Mode (E-E) as well as automatically switch to Interface Echo Mode (I-E)when measuring thicker materials, For measurement of plastics, the user would select Plastic Mode (PLAS) and use the option Graphite Delay Line Tip (p/n X-633-0000).
Additional Measuring Modes include Differential (DIFF) where a user sets a "nominal value" and the gauge displays the +/- difference between then nominal and actual wall thickness, Alarm (user-set Hi/Low Limits) trigger Hi/Lo LED's when the measured values are out of tolerance and Velocity Mode.
The TI-007DLX can also be used with single element contact transducers for wall thickness measurements up to 36 inches (923 mm).
Features:
- Includes NIST Traceable Calibration Certificate
- Large, backlit LCD display retains last reading
- Resolution of 0.0001 inch (0.001 mm) with Selectable units of inch or mm
- Built-in data logging for 10,000 data values stored in up to 40 batches with 250 values/batch with USB Output
- Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed
- Adjustable GAIN (AGC) in 5 steps to fine tune the gauge for use on challenging materials or applications
- Can be used with both Single Element Delay Line and contact transducers (5 to 20MHz)
- LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero and units
- Operates on two (2) AA Batteries - 45 hours continuous operation
- Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity
- Powered by: 120MHz FPGA timing & 100 volt spike pulser
- Measure Modes: Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS)
- Additional Modes Include Differential (from user-entered "nominal value"), Alarm (user-set Hi/Low Limits) and Velocity Mode
- Optional serial RS-232 or Bluetooth output
- IP 65 Rated for protection even in the toughest field conditions
- 5 Year Warranty, CE-Certified and Made in USA
- Kit includes: The TI-007X is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, USB-C Data transfer cable, 2 AA batteries, NIST Traceable Calibration Certificate and Instruction Manual - all in a foam-fitted carrying case.
Specifications
- Range with Standard Probe: 0.0060-1.0000" (0.15-25.40 mm) with standard delay line transducer in steel
- Total Measuring Range (Steel): 0.006 - 36.000" (0.15 - 924 mm)
- Resolution: 0.0001" (0.001 mm) . 0.001" (0.01 mm), user-selected units and resolution
- Display: Multi-function 7 segment 4.5 digit liquid crystal display with Back-light
- Velocity Range: 0.0120 to .7300 in/us (305 to 18,542 m/sec)
- Display: With backlight. Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
- Output Optional: RS-232 and Bluetooth
- Cable: 4 ft. (1.2 m) with Microdot/Lemo00 connector.
- Output: USB single value only (no internal memory)TI-007DLX for a model with build-in memory for 40,000 values USB output
- Operating Temperature: -30 to 75 C (-22 to 167 F)
- Housing Protection: IP65
- Battery Life: Typically operates for 35 hours on alkaline and 18 hours on NiCad
- Weight: 11 ounces (308 grams)
- Dimensions: 2.5 x 5.17 x 1.25" (64 x 131 x 32 mm)
