PR1000 Data Logger, 0 - 30 PSIG
ORDER ME IN
Backorder Now, once ordered your item will dispatch before the 16th of July 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

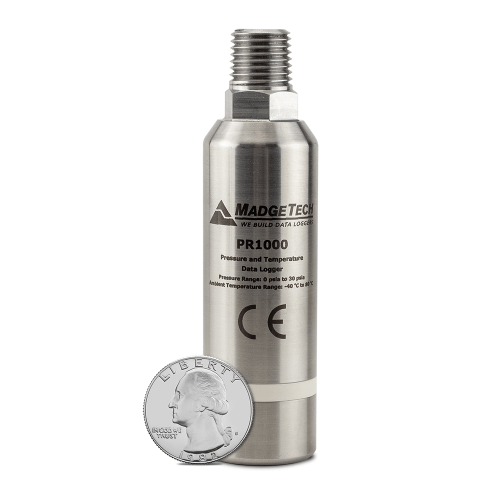

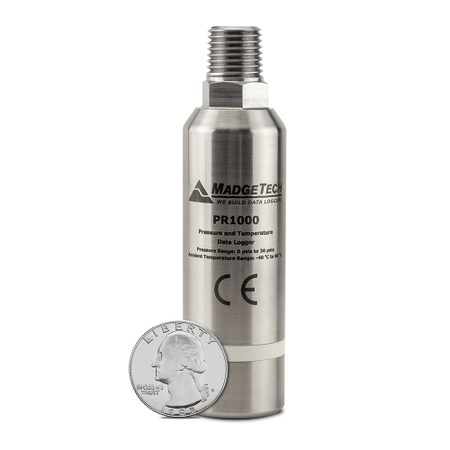

The PR1000 is a temperature, pressure and transient pressure data logger with an NPT fitting. Includes ISO/IEC 17025 Accredited Certificate.
- - Pressure range of this model : 0 to 30 PSIG.
- - Compact and submersible.
- - Can store more than 1.3 million readings.
Regular price
$1,821.65 AUD
+ GST
$2,003.82 AUD Inc. GST
$2,003.82 AUD Inc. GST
Note: Requires the IFC400. Sold separately.
The PR1000 is a temperature, pressure and transient pressure data logger that is fully submersible. Standing just under 4 inches tall and an inch in diameter, the PR1000 is compact for easy placement and features a 1/4 inch NPT fitting for quick connection. The PR1000 can store more than 1.3 million readings with an internal temperature sensor that provides measurements from -40 to +80 C (-40 to +176 F) with an accuracy of +/ 2.0 C.
The PR1000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
Specifications
- Pressure Range: 0 to 30 PSIG
- Pressure Resolution: 0.0005 PSI
- Pressure Calibrated Accuracy: +/- 0.6 PSI
- Temperature Sensor: Internal semiconductor
- Temperature Range: -40 to +80 C (-40 to +176 F)
- Temperature Resolution: 1.0 C
- Temperature Calibrated Accuracy: +/- 2.0 C
- Mode: 10 Days (at 128Hz)
- Material: 316 Stainless Steel/Radel
- Dimensions: 91.3 mm x 24.6 mm dia.
- Submersible: Yes
- Operating Environment: -40 to 80 C (-40 to +176 F), 0 %RH to 100 %RH
- Required Interface Package: IFC400 or IFC406
- Approvals: CE
