PR1000 Data Logger, 0 - 100 PSIA

ORDER ME IN
Product code: PR1000-100PSIA

Order Me In, Once ordered this item will likely dispatch before the 20th of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

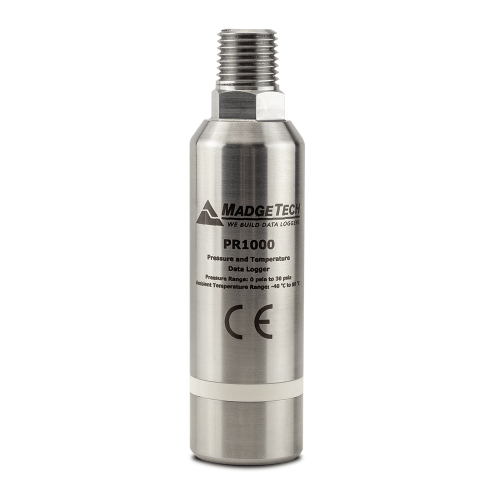

The PR1000 is a temperature, pressure and transient pressure data logger with an NPT fitting. Includes ISO/IEC 17025 Accredited Certificate.

  • - Pressure range of this model : 0 to 100 PSIA.
  • - Compact and submersible.
  • - Can store more than 1.3 million readings.

Read more

$1,872.38 AUD + GST
 $2,059.62 AUD Inc. GST
Note: Requires the IFC400. Sold separately.

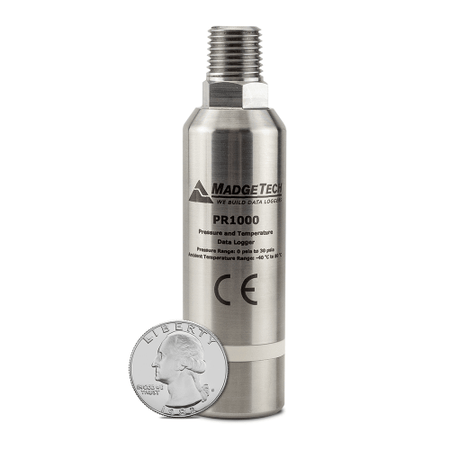

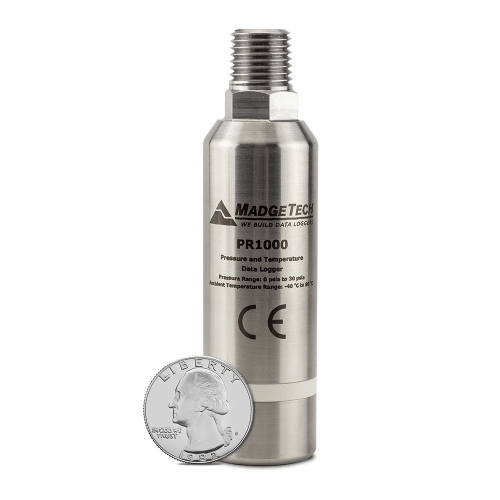

The PR1000 is a temperature, pressure and transient pressure data logger that is fully submersible. Standing just under 4 inches tall and an inch in diameter, the PR1000 is compact for easy placement and features a 1/4 inch NPT fitting for quick connection. The PR1000 can store more than 1.3 million readings with an internal temperature sensor that provides measurements from -40 to +80 C (-40 to +176 F) with an accuracy of +/ 2.0 C.
The PR1000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Specifications

- Pressure Range: 0 to 100 PSIA
- Pressure Resolution: 0.002 PSI
- Pressure Calibrated Accuracy: +/- 2 PSI
- Temperature Sensor: Internal semiconductor
- Temperature Range: -40 to +80 C (-40 to +176 F)
- Temperature Resolution: 1.0 C
- Temperature Calibrated Accuracy: +/- 2.0 C
- Mode: 10 Days (at 128Hz)
- Material: 316 Stainless Steel/Radel
- Dimensions: 91.3 mm x 24.6 mm dia.
- Submersible: Yes
- Operating Environment: -40 to 80 C (-40 to +176 F), 0 %RH to 100 %RH
- Required Interface Package: IFC400 or IFC406
- Approvals: CE
