Powered universal input and output transmitter (4 Wire) - XU4
Backorder Now, once ordered your item will dispatch before the 16th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$317.90 AUD Inc. GST

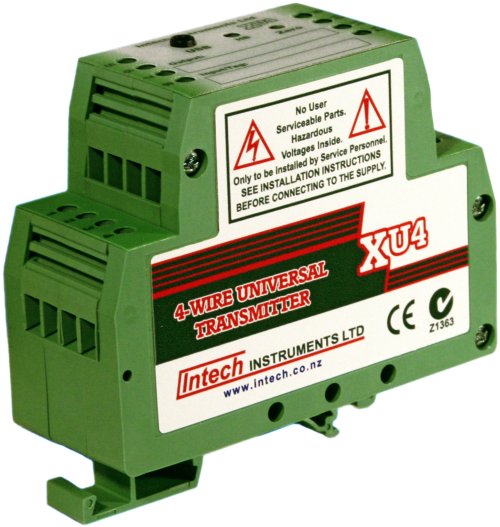

The Intech XU4 (4 Wire) is a DIN Rail Mount, USB Programmable, Universal Input and Output Transmitter with easy to use setup software. A universal input with a large selection of input types and can be powered by AC or DC voltages.
Features:
Programmable via USB (requires the XU-USB programming key)
No power supply or calibration required during programming
Input Types:
- RTD Pt100 and Pt1000
- Thermocouple B, E, J, K, N, R, S, T
- For RTD and Thermocouple; Output is Linear with Temperature
- mA, mV and V
- Potentiometer
- 32 point curve fitter for mA, mV, V inputs
Input to Output Isolation 3750Vac
High Accuracy 0.1%
Universal AC/DC Power Supply; 20~265Vac or 21~100Vdc.< br/>
Reverse Polarity Protection
Heartbeat Status LED
Zero Adjust pot
Case Temperature range -20C to +80C
Compact DIN Rail Mount Enclosure
Easy to Install
Low Cost
Specifications
Output 4 wire- Voltage Field Programmable from 0V~10V, 10V~0V, +10V to (-10V), -10V to +10V
Maximum Output Drive = 10.4Vdc. (520@20mA.)
- Current Field Programmable from 4~20mA, 0~20mA, 20~4mA & 20~0mA
Maximum Output Drive = 20mA (650 maximum load @13Vdc.)
Universal P/S: 20~265Vac and 21~265Vdc
- Circuit Sensitivity <0.001%/V FSO Typical.
EMC Emissions Compliance EN 61326
EMC Immunity Compliance EN 61326
Safety Compliance EN 61010-1
Accurate to <0.03% FSO Typical.
Linearity & Repeatability <0.02% FSO Typical. (Unless Individual Specifications State Otherwise.)
Ambient Drift <0.003%/C FSO Typical.
Noise Immunity 125dB CMRR Average. (2.0kVdc Limit.)
R.F Immunity <1% Effect FSO Typical.
Signal Isolation Voltage Between Input and Output 3750Vac for 1 min.
Response Time 400msec Typical. (From 10 to 90% 300msec Typical)
Output calibrate via Pot 0.5mA Zero offset adjust
Error Detection LED indication for sensor errors.
Operating Temperature -20~85C.
Storage Temperature -20~100C.
Operating Humidity 5~85%RH Max. Non-Condensing.
Mounting 35mm Symmetrical Mounting Rail.
Dimensions:
Height: 79mm
Width: 30mm
