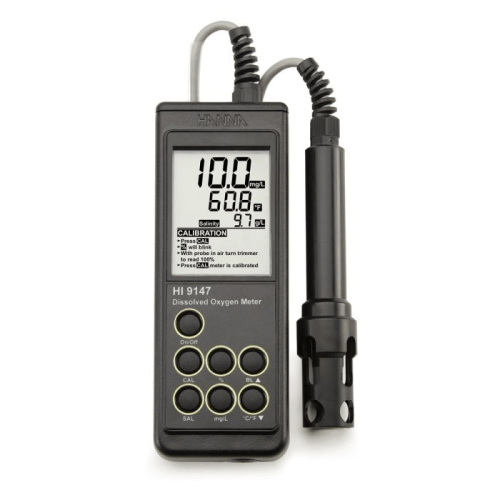

Portable Galvanic Dissolved Oxygen Meter (With 15 Meter Cable) - IC-HI9147-15
Portable Galvanic Dissolved Oxygen Meter (With 15 Meter Cable) - IC-HI9147-15
ORDER ME IN
Backorder Now, once ordered your item will dispatch before the 21st of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The HI9147 is a rugged, water-resistant dissolved oxygen (DO) meter designed for aquaculture applications.
- - Uses galvanic sensor technology where the electrodes’ potential difference drives the reaction, requiring no external voltage.
- - Comes with a galvanic probe with 15 meter cable, HDPE membrane caps, electrolyte fill solution, a protective shield, and sturdy carrying case.
Regular price
$1,255.38 AUD
+ GST
$1,380.92 AUD Inc. GST
$1,380.92 AUD Inc. GST
The HI9147 is a rugged, water-resistant dissolved oxygen (DO) meter designed for aquaculture applications. The meter and probe use galvanic sensor technology where the electrodes potential difference drives the reaction, requiring no external voltage. Oxygen diffuses across the membrane and the system establishes a current proportional to the concentration of dissolved oxygen present. HI9147 comes with a galvanic, HDPE membrane caps, electrolyte fill solution, a protective shield, and sturdy carrying case.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
IC-HI9147-04 Features
- Galvanic Measuring System, requiring no external voltage
- Silver cathode and zinc anode in an electrolyte solution with a polymer membrane
- Automatic calibration at one or two points to 100% and/or 0% saturation
- Altitude compensation up to 4000 meters with a 100-meter resolution
- Salinity compensation is adjustable from 0 to 51 g/L (ppt) with a 1 g/L resolution for the measurement of DO in brackish and sea water
- Auto end point mode freezes a reading on the display once a stable measurement is obtained
- Good Laboratory Practice allows users to recall calibration information
- Replaceable, pretensioned, polytetrafluoroethylene (PTFE) membranes with a screw cap design
Standard package includes:
HI9147 is supplied complete with HI76409 probe, HI76409A/P pre-formed HDPE DO membranes (2), HI7042S electrolyte solution (30 mL), batteries, instructions and rugged carrying case
Specifications
|
Dissolved Oxygen Range:
|
0.00 to 50.00 ppm (mg/L); 0.0 to 600.0% saturation
|
|
Dissolved Oxygen Resolution:
|
0.1 mg/L (ppm); 1% saturation
|
|
Dissolved Oxygen Accuracy:
|
1% of reading
|
|
Dissolved Oxygen Calibration:
|
manual, in saturated air
|
|
Dissolved Oxygen Temperature Compensation:
|
automatic from 0 to 50C (32 to 122F)
|
|
Salinity Compensation:
|
0 to 51 g/L (ppt) (1 g/L resolution)
|
|
Altitude Compensation:
|
0 to 4000 m (resolution 100 m)
|
|
Temperature Range:
|
0.0 to 50.0C / 32.0 to 122.0F
|
|
Temperature Resolution:
|
0.1C; 1F
|
|
Temperature Accuracy:
|
0.2C; 1F (excluding probe error)
|
|
DO Probe:
|
galvanic DO probe, internal temperature sensor, DIN connector
|
|
Battery Type/Life:
|
1.5V AAA (3) / approximately 1000 hours of continuous use without backlight
|
|
Environment:
|
0 to 50C (32 to 122F); RH max 95% non-condensing
|
|
Dimensions:
|
185 x 72 x 36 mm (7.3 x 2.8 x 1.4)
|
