Home > Portable Coating Thickness Gauge (Non-Destructive) - IC-WT2110
Wintact Electronics

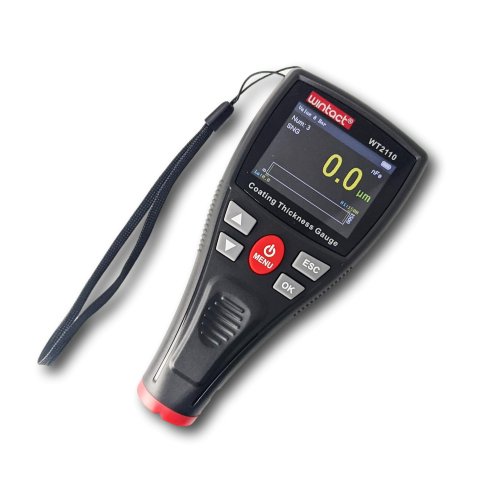

Portable Coating Thickness Gauge (Non-Destructive) - IC-WT2110

7 In Stock
Product code: IC-WT2110
This product is a color-screen portable coating thickness gauge with high-definition display, which can quickly, non-destructively and accurately measure non-magnetic coating thickness on magnetic metal substrates and non-metallic coating thickness measurement on non-magnetic metal substrates.

Read more

$389.80 AUD + GST
 $428.78 AUD Inc. GST
Features:
- Thickness measurement of non-magnetic coating on magnetic metal substrate surface and non-metallic coating on non-magnetic metal substrate
- Menu operation and colo-screen HD display
- Two measurement methods: single measurement, continuous measurement
- Three calibration modes: basic, offset, zero calibration
- Metric/imperial unit and storage function
- Screen rotation, charge protection, multi-interface displays, screen brightness selection
- Automatic shutdown
Specialization:
- Measurement range: 0 to 1500 um/0 to 59 mil/0 to 1.5 mm
- Resolution: (0.1 um(<100um),1um(?100um))/0.1mil/0.001 mm
- Measurement error: Accuracy: +/-5um(+/- 150um), +/-(3%H+1um)(+/- 150um)
- Minimum diameter of magnetic metal substrate: 12mm
- Minimum thickness of magnetic metal substrate: 0.5mm
- Minimum radius of curvature for magnetic convex substrate: 2mm
- Minimum radius of curvature for magnetic concave substrate: 11mm
- Minimum diameter of non-magnetic metal substrate: 50mm
- Minimum thickness of non-magnetic metal substrate: 0.5mm
- Battery: 3x 1.2V NiMH battery (weight 36.5g) or 5V1A power adapter
- Size: 70.30 x 38.6 x 149.59 mm
