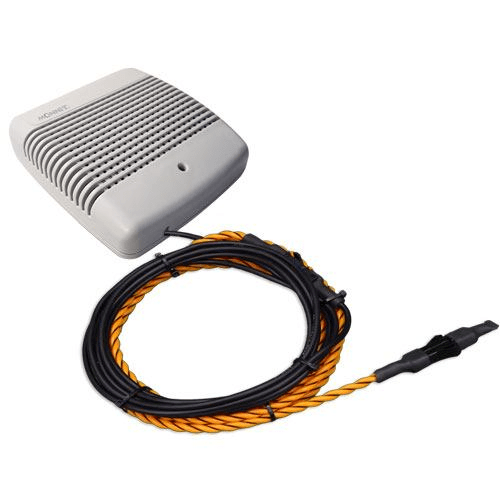

PoE•X Water Rope Sensor

ORDER ME IN
Product code: MNS-P-C1-WS-WR

Order Me In, once ordered this item will likely dispatch before the 14th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The Monnit Power-over-Ethernet (PoE) Water Rope Sensor detects conductive liquids anywhere along the length of the detection rope by using two wires covered with conducting polymer. When water or conductive liquid contacts the rope, the sensor will immediately transmit data to iMonnit.

Read more | Need help? 3 Hour Business Reply

$640.00 AUD + GST
 $704.00 AUD Inc. GST
Note: Gateway required to operate this sensor
The Monnit Power-over-Ethernet (PoE) Water Rope Sensor detects conductive liquids anywhere along the length of the detection rope by using two wires covered with conducting polymer. When water or conductive liquid contacts the rope, the sensor will immediately transmit data to iMonnit.
When water or conductive liquid contacts the rope, the sensor will immediately transmit data to iMonnit. The sensor rope dries quickly allowing the sensor to reset for next use. The detection rope can be expanded up to 100 feet by simply clicking additional 10 foot sections of detection rope together.
Features:
- Power-over-Ethernet ready (injector hardware required)
- Embedded LEDs for transmission & online condition indicators
- 50,000 sensor message memory (non-volatile)
- Modbus TCP & SNTP v1 interface capabilities
- No PC required (managed through apps and smart devices)
- Remote update capable w/automatic updates

Specifications

- Material: PE plus alloy lead
- Rope Weight: 30g / meter
- Pull Force Limit: 60 kg
- Fire Resistance: Plenum rated
- Cable Diameter: 5.5 mm
- Maximum Exposed Temperature: 75 C
- Cable length: 120 in.
- Communication Hardware: 10 / 100 Ethernet Controller
- PoE Requirements: Class 1 Device (500mW)
- IEEE Standard Compliance: 802.3AF-2003 / 802.3AT-2009 Class 1
- Operation: Full- and Half-Duplex
- Cross-Over Correction: Automatic MDI / MDI-X
- Protocols Supported: DHCP, DNS, NTP, UDP, TCP, SNMP, Modbus TCP
- Input Power: Supplemental Power Requirement
- Cable Connector: RJ45
- Supplementary Power Connector: 2.1 x 5.5 mm barrel jack, center positive
- Device Memory: Up to 50,000 sensor messages; varies based on sensor type. (Sensor messages will be stored in the event of Internet outage and transferred when connection is restored.)
- Forced Communication / Reset Hardware: Button
- Operating Temperature: -20 to +60 C
- Storage Temperature: -20 to +85 C
