PoE•X Open-Closed Sensor

ORDER ME IN
Product code: MNS-P-C1-OC-ST

Order Me In, once ordered this item will likely dispatch before the 14th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

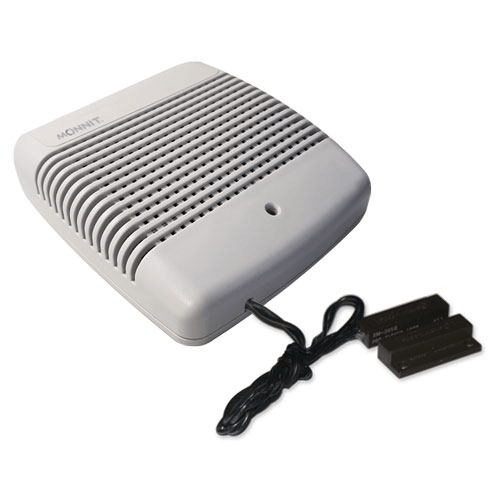

The Power-over-Ethernet (PoE) Open / Closed Sensor uses an external magnetic switch to detect the presence or removal of a trigger magnet. When the sensor detects that the magnet is removed or returned it sends the information to iMonnit.

Read more | Need help? 3 Hour Business Reply

$442.00 AUD + GST
 $486.20 AUD Inc. GST
The Power-over-Ethernet (PoE) Open / Closed Sensor uses an external magnetic switch to detect the presence or removal of a trigger magnet. When the sensor detects that the magnet is removed or returned it sends the information to iMonnit.
Features:
- Power-over-Ethernet ready (injector hardware required)
- Embedded LEDs for transmission and online condition indicators
- 50,000 sensor message memory (non-volatile)
- Modbus TCP and SNTP v1 interface capabilities
- No PC required (managed through apps and smart devices)
- Remote update capable w/automatic updates

Specifications

- Contact Type: Gold under-plating with Deactivated Rhodium outer-plating
- Switch Cycles: 50 million
- Operation Gap: Up to 3/4 inch
- Wire Leads: 22 gauge / 13.5 in length ( 1.5 in)
- Magnet: Alnico
- Magnet Case Construction: Weatherproof, high-impact ABS plastic and self adhesive
backing
- Magnet Temperature Range: -25 to 70 C
- Communication Hardware: 10 / 100 Ethernet Controller
- PoE Requirements: Class 1 Device (500mW)
- IEEE Standard Compliance: 802.3AF-2003 / 802.3AT-2009 Class 1
- Operation: Full- and Half-Duplex
- Cross-Over Correction: Automatic MDI / MDI-X
- Protocols Supported: DHCP, DNS, NTP, UDP, TCP, SNMP, Modbus TCP
- Input Power: Supplemental Power Requirement

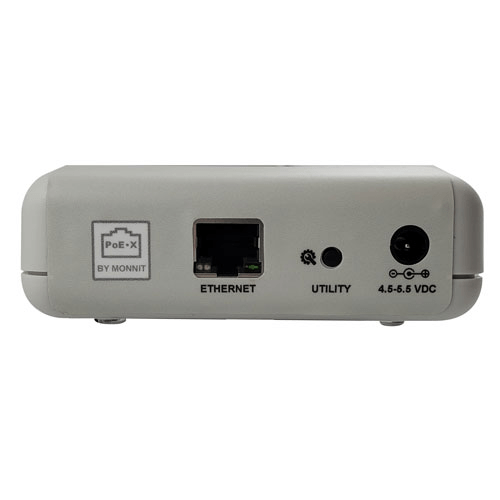

- Cable Connector: RJ45
- Supplementary Power Connector: 2.1 x 5.5 mm barrel jack, center positive
- Device Memory: Up to 50,000 sensor messages; varies based on sensor type. (Sensor messages will be stored in the event of Internet outage and transferred when connection is restored.)
- Forced Communication / Reset Hardware: Button
- Operating Temperature: -20 to +60 C
- Storage Temperature: -20 to +85 C
