Home > PoE•X Infrared Motion and Occupancy Sensor
Monnit

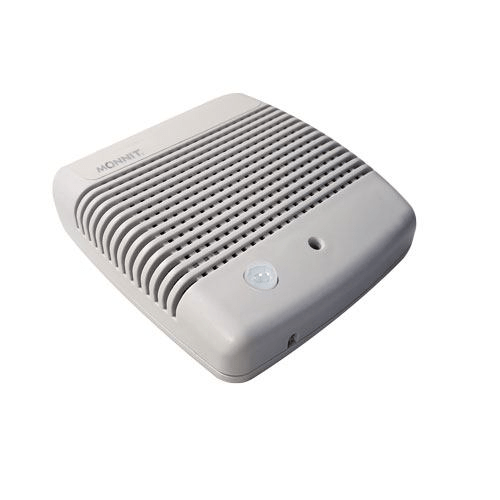

PoE•X Infrared Motion and Occupancy Sensor

ORDER ME IN
Product code: MNS-P-C1-MS-IR

Backorder Now, once ordered your item will dispatch before the 31st of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The Power-over-Ethernet (PoE) Motion Detection (PIR) Sensor detects motion and movement using infrared technology. iMonnit stores all data in the online system where the data can be reviewed and exported as a data sheet or graph. Notifications can be set up through the online system to alert the user when motion has been detected.

Read more

$467.00 AUD + GST
 $513.70 AUD Inc. GST
Note: Gateway required to operate this sensor
The Power-over-Ethernet (PoE) Motion Detection (PIR) Sensor detects motion and movement using infrared technology. iMonnit stores all data in the online system where the data can be reviewed and exported as a data sheet or graph. Notifications can be set up through the online system to alert the user when motion has been detected.
Features:
- Power-over-Ethernet ready (injector hardware required)
- Embedded LEDs for transmission and online condition indicators
- 50,000 sensor message memory (non-volatile)
- Modbus TCP and SNTP v1 interface capabilities
- No PC required (managed through apps and smart devices)
- Remote update capable w/automatic updates

Specifications

- Software Adjustable Sensor Detection Range: 4.5 m/ 3.7 m/ 2.7 m
- Sensor Warm-up Time: 30 Seconds
- Communication Hardware: 10 / 100 Ethernet Controller
- PoE Requirements: Class 1 Device (500mW)
- IEEE Standard Compliance: 802.3AF-2003 / 802.3AT-2009 Class 1
- Operation: Full- and Half-Duplex
- Cross-Over Correction: Automatic MDI / MDI-X
- Protocols Supported: DHCP, DNS, NTP, UDP, TCP, SNMP, Modbus TCP
- Input Power: Supplementary Power Requirement
- Cable Connector: RJ45
- Supplementary Power Connector: 2.1 x 5.5 mm barrel jack, center positive
- Device Memory: Up to 50,000 sensor messages; varies based on sensor type. (Sensor messages will be stored in the event of Internet outage and transferred when connection is restored.)
- Forced Communication / Reset Hardware: Button
- Operating Temperature: -20 to +60 C
- Storage Temperature: -40 to +85 C
