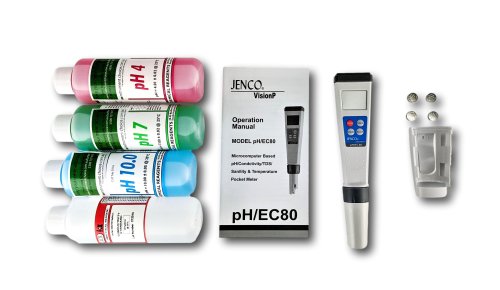

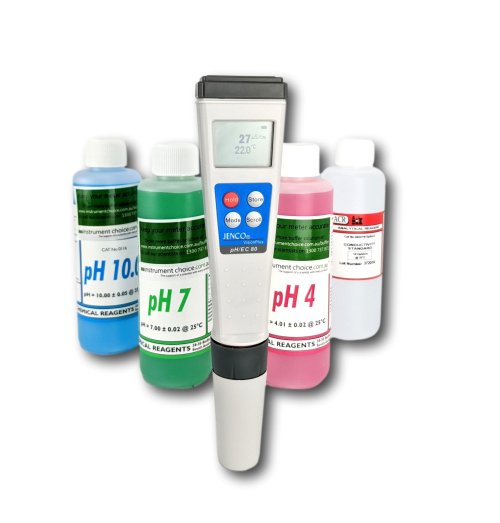

Kit includes:

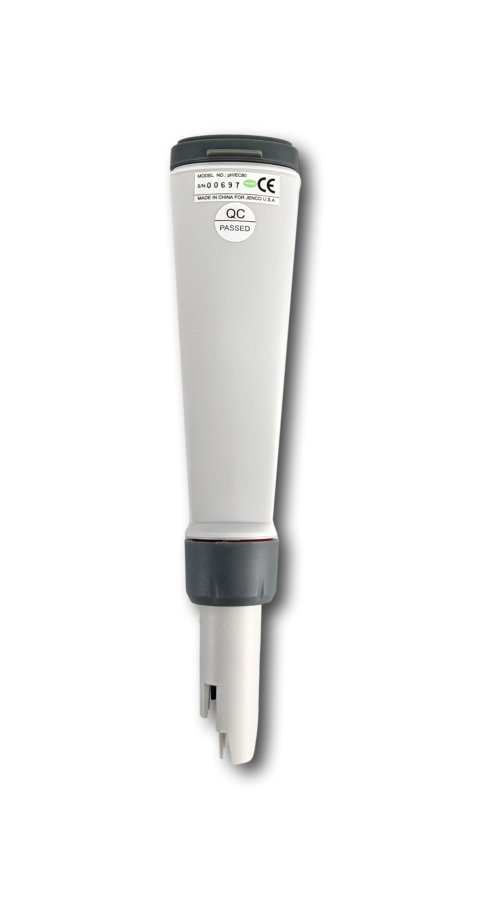

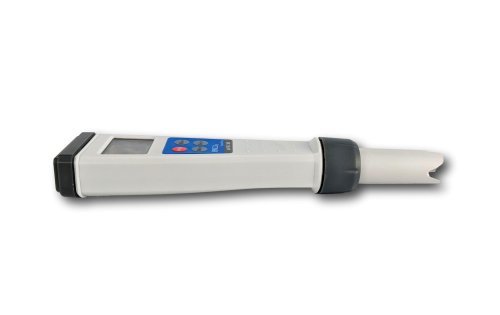

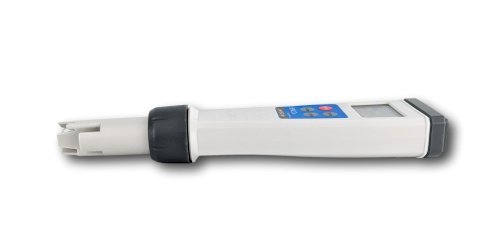

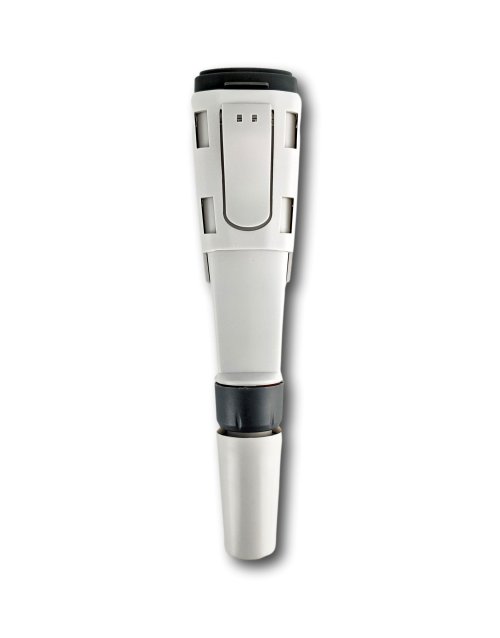

1 x pH/EC80 pH, Conductivity, TDS, Salinity, Temperature Meter

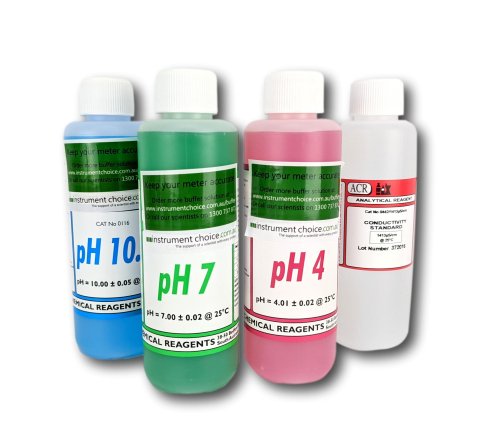

1 x 250ml pH4 Buffer Solution
1 x 250ml pH7 Buffer Solution
1 x 250ml pH10 Buffer Solution
1 x 250ml 1413uS Conductivity Calibration Solution

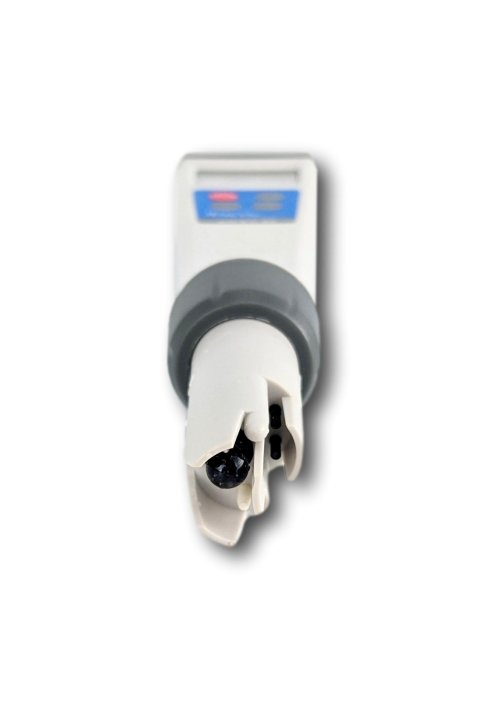

pH, Conductivity, TDS, Salinity, Temperature In-line Analyzer.pH, Conductivity, TDS, Salinity and temperature tester with a graphic LCD display that simultaneously
displays all functions of pH and Conductivity, TDS or Salinity with built in 50 memory data sets for recall of all readings and is user selectable
for degrees Celsius or Fahrenheit and has a IP-67 water resistant case that allows replacement pH/Conductivity modules.
Features:
- Simultaneously measures pH, Conductivity, TDS Salinity and temperature without switching probe

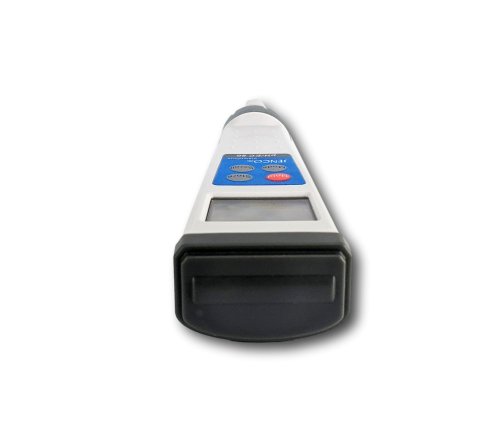

- Graphic LCD display
- Auto temperature compensation
- Switches between C and F
- Auto shut down feature
- Replaceable pH/Conductivity electrode module
- 50 sets of data memory
- IP67 waterproof
- Battery life >100hrs
- CE approved and RoHS compliant
Specifications
pH:
- pH Range: 0.00 to 14.00
- pH Resolution: 0.01
- pH Accuracy: +- 0.01 pH
Conductivity:
- Conductivity Range Range: 0 uS/cm to 20.00 mS/cm
- Conductivity Resolution Range 1: 1 uS / 0.01 mS
- Conductivity Accuracy Range 1: +- 1 % FS
- Conductivity Range 2: 0 uS/cm to 1999 uS/cm
- Conductivity Resolution 2: 1 uS / 0.01 mS
- Conductivity Accuracy 2: +- 1 % FS
Salinity:
- Salinity Range: 0.00 to 10.00 ppt
- Salinity Resolution: 0.01 ppt
- Salinity Accuracy: +- 1 % FS
TDS:
- TDS Range 1: 0 mg/L to 20.00 g/L
- TDS Resolution 1: 1 mg/L / 0.01 g/L
- TDS Accuracy 1: +- 1 % FS
- TDS Range 2: 0 mg/L to 1999 mg/L
- TDS Resolution 2: 1 mg/L / 0.01 g/L
- TDS Accuracy 2: +- 1 % FS
Temperature:
- Temperature Range: 1 -5.0 to 60.0 C
- Temperature Resolution: 1 0.1 C
- Temperature Accuracy: 1 +- 0.5 C
- Temperature Range 2: 23 to 140 F
- Temperature Resolution 2: 0.1 F
- Temperature Accuracy 2: +- 0.9 F
Calibration:
- pH Calibration: 1, 2 and 3 point calibration. Uses USA and NIST buffer sets.
- Conductivity Calibration: 1 point calibration
- Temperature Compensation Range: -5.0 to 60.0 C
- Reference Temperature: 15 to 25 C
- Temperature Coefficient: 0.00 to 4.00 %. Default at 1.91 %/C
- TDS Constant: 0.30 to 1.00, Default at 0.65
- TDS Constant: 0.65
- Temp Sensor: Thermistor, 10k ohms, at 25 C
- Temp Unit: C and F
General:
- Display: Graphic LCD
- Storage of Calibration Data: Yes
- Data Memory Storage: 50 sets
- Auto Shutoff: After 10 minutes of inactivity.
- Power: 4 x LR-44 batteries
- Working Environment: 0 to 50 C, relative humidity < 95 %
- Dimensions: 200 x 44 x 25mm
