PCE-XXM 20 Colour Meter

DISCONTINUED
Product code: PCE-XX-20

Unfortunately, the PCE-XXM 20 has been discontinued, check out other Colour Meters for more options.

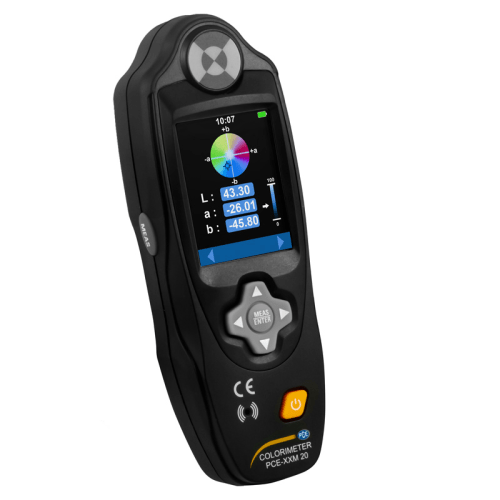

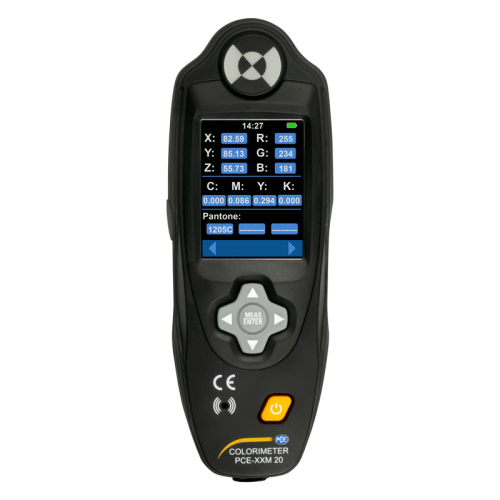

The PCE-XXM 20 is a wireless color meter used to quickly measure the color of surfaces.

-Color measurements according to CIE LAB.

-Readings can be displayed in LAB, XYZ, RGB or Pantone.

-With Bluetooth 4.0

Read more

Unfortunately, the PCE-XXM 20 has been discontinued, check out other Colour Meters for more options.
The color meter PCE-XXM 20 is used to quickly measure the color of surfaces. The color meter has a highly sensitive RGB photodiode as a color sensor. The measurement of the color with the color meter PCE-XXM 20 takes place in the LAB color space. The measured value is displayed as LAB, XYZ, RGB or even Pantone value. Also, the color meter can measure the color difference E between two samples and display it on the color display.

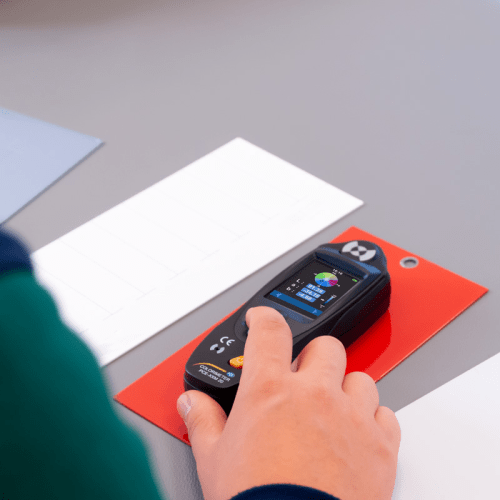

These features make the PCE-XXM 20 colorimeter an easy-to-use color meter. The color meter can be used primarily in printing for quality control. Of course, it is also possible to check other samples for the correctness of color with the help of the color meter, this can be, for example, toasters, microwaves, cars, etc.
Features:
- Color meter for surfaces
- Digital display
- Measurement according to CIE LAB

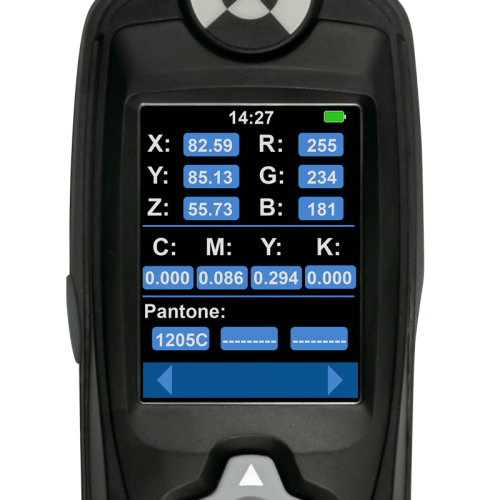

- Display in LAB, XYZ, RGB, CMYK, Pantone
- Short measuring time
- Battery operation
- Bluetooth
- Meterbox Lab App (Playstore) (Android)
- Meterbox Lab App (App Store) (iOS)

Specifications

- Color spaces: CIE LAB, CIE XYZ, RGB, CMYK, Pantone
- Wavelength color sensor: 400 to 720 nm
- Standards: CIE76, CIE94
- Measuring field: 8 mm
- Measuring angle: 10 degrees CIE Standard
- Measuring time: 1.5 s
- Lighting: White light LEDs
- Lighting angle: 45 degrees
- Sensor: RGB Photodiode

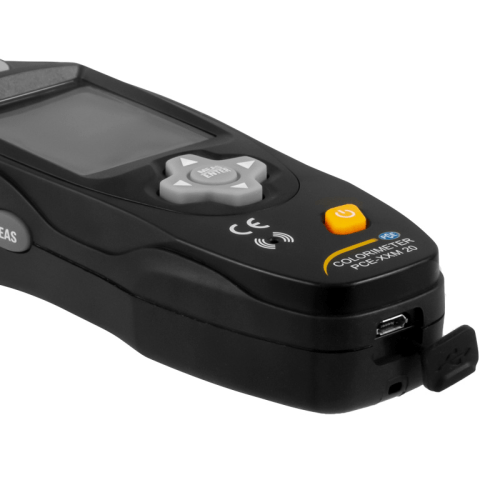

- Interface: Micro-USB / Bluetooth

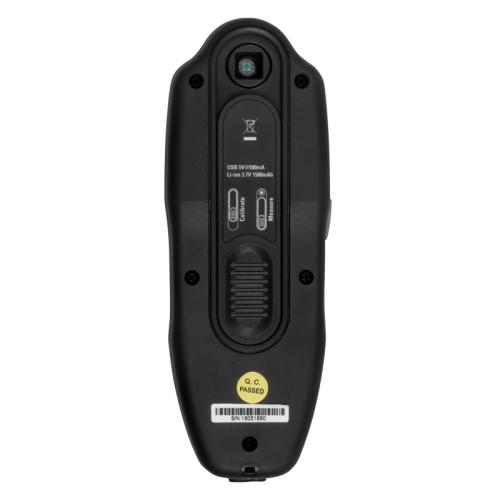

- Power supply: 3.7V / 1500-mAh Li-Ion battery / USB power adapter
- Dimensions: 55 x 153 x 32 mm
- Weight: 120 g
