PCE-WSB 1 Brightness Tester

ORDER ME IN
Product code: PCE-WSB-1

Order Me In, once ordered this item will likely dispatch before the 13th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The PCE-WSB 1 is a portable handheld battery-powered brightness tester or whiteness color meter based on ISO 2470 and ISO 3688 standards.

-Repeat accuracy of +/- 0.1.

-Can be used to measure the brightness/whiteness of non-metal samples such as paper products, textiles, concrete, cosmetics, ingredients (flour, salt, starch, etc.), detergents, etc.

-Includes black, white and brilliance standards for DIY calibration.

Read more | Need help? 3 Hour Business Reply

$2,789.90 AUD + GST
 $3,068.89 AUD Inc. GST

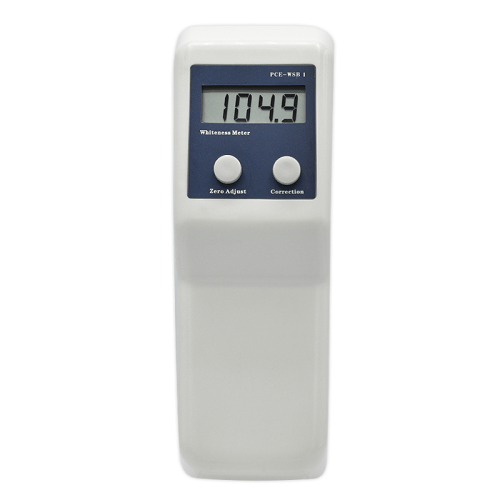

PCE-WSB 1 is a portable handheld battery-powered brightness tester or whiteness color meter used to measure the brightness level of paper, cardboard, cellulose, pulp, textiles, paint, enamel, plastic, porcelain, cement, concrete, building materials, chemicals, powders, talc, starch, flour, salt, detergents, cosmetics and other non-metal substances.

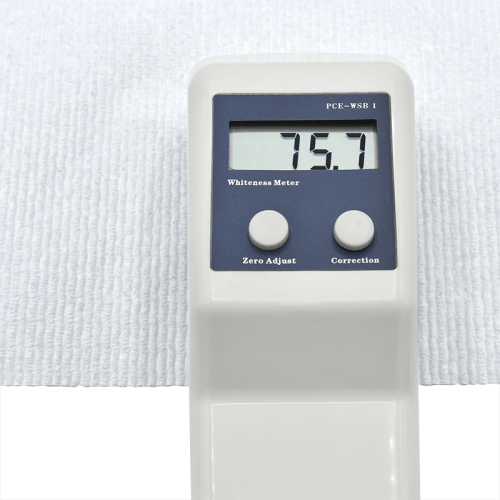

Ideally used on flat surfaces, the brightness tester / whiteness color meter features an easy-to-read liquid crystal display (LCD) screen. The device determines the brightness level by measuring the intensity of the light reflection diffused on a scale of 100. The level of brightness of an absolutely black surface is defined by the meter as 1. Included with the meter are black, white and brilliance standards for DIY calibration as needed to ensure accurate, repeatable measurements are consistently obtained.
Features:
- Measures the whiteness degree of blue light (Wb = R457)
- Meets ISO 2470 and ISO 3688 standards
- Compact, lightweight and user-friendly
- Easy-to-read liquid crystal display (LCD) screen

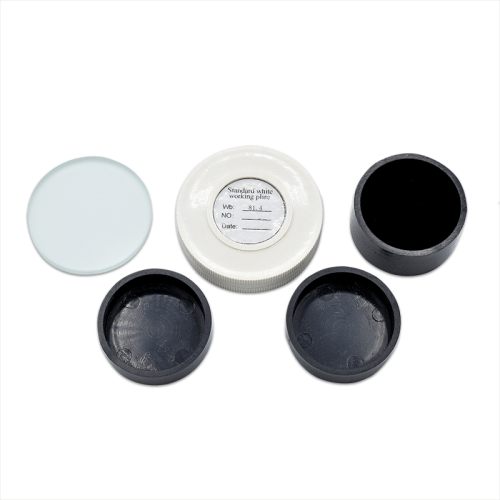

- Includes black, white and brilliance standards for DIY calibration
- Resolution: 0.1
- Repeat accuracy: +/- 0.1

Specifications

- Measuring range: 0 to 100.0 (displays values up to 199.9). Whiteness degree formula Whiteness degree of blue light
Wb = R457
- Light source: Approximating A; simulating D65
- Light measuring conditions: 45/0
- Display resolution: 0.1
- Display accuracy: +/- 0.1
- Standards: ISO 2470; ISO 3688
- Display: Liquid crystal display (LCD)

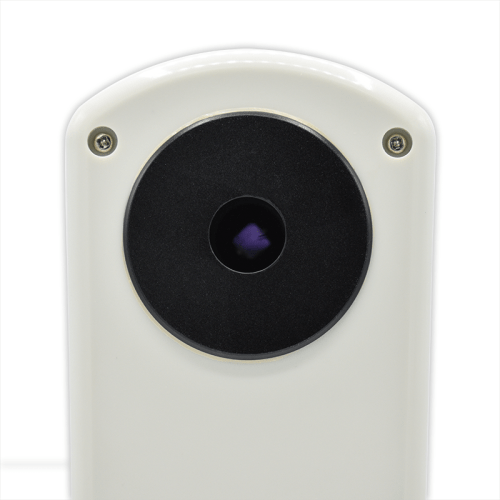

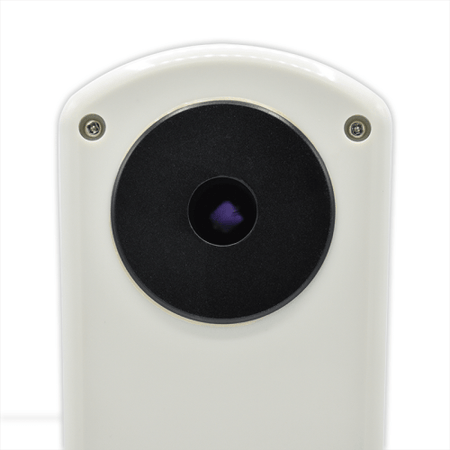

- Measuring aperture: Diameter 15 mm
- Power supply: 5x 1.5 V AA batteries
- Operating conditions: 5 to 35 C /less than 85 % RH
- Dimensions Approx.: 235 x 75 x 65 mm
- Weight Approx.: 500 g
