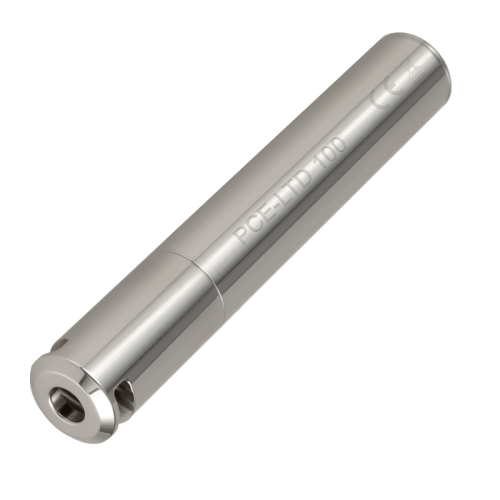

PCE-LTD 100 Cryo Data Logger

ORDER ME IN
Product code: PCE-LTD-100

Backorder Now, once ordered your item will dispatch before the 28th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The PCE-LTD 100 is a low temperature data logger that can measure temperature up to -80°C.

-Can store more than 17,000 measurements.

-Made with robust design with IP67 protection.

-With USB interface.

Read more

$429.60 AUD + GST
 $472.56 AUD Inc. GST

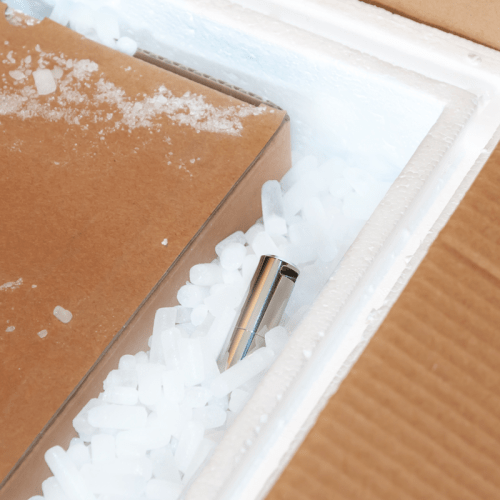

The PCE-LTD 100 cryo data logger can record the temperatures in the range from - 80 to + 70 C, suitable for monitoring the temperature of certain goods and products in transit such as medicines, vaccines, or blood plasma.
Due to the robust and compact design and the special battery adapted to the conditions, the Cryo data logger can be used without any problems in a wide variety of refrigerated containers and cooling devices. The high degree of protection IP 67 ensures that water and foreign bodies do not penetrate into the Cryo data logger and allows thorough and hygienic cleaning.
The special battery is suitable for low temperatures, but has a much shorter runtime at very low temperatures. At the temperatures between minus 80 C and minus 70 C, for example, the Cryo data logger can store the measurement data at 15-minute intervals for 30 days with this battery.
Features:
- measuring range -80 C to +70 C
- robust design with protection class IP 67
- memory capacity for 17,280 values
- selectable storage interval from 1 s to 24 h

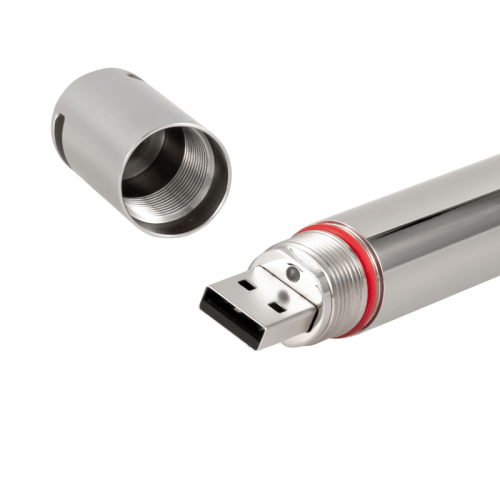

- readout via USB interface
- many data formats selectable for export
- configurable via supplied software
- exchangeable special battery

Specifications

- Measuring range: -80 to 70 C
- Measuring accuracy: 0.5 C (-30 to +70 C); 1 C (-80 to -31 C)
- Resolution: 0.1 C
- Storage capacity: 17,280 values
- Sampling interval: 1 s and 24 h
- Storage formats via software: PDF, TXT, CSV, XLS, JPG, BMP, CIN
- Start mode: time setting
- Stop modes: when a USB connection has been established, as soon as the memory is full, as soon as the set number of memory points has been reached
- Operating conditions: -80 to +70 C, non-condensing
- Storage conditions: -40 +70 C (without battery)
- Battery life: 2 years at 25 C /15 min storage interval. 30 days at -80 to -70 C/ 15 min storage interval
- Power supply: 3.6 V 2/3 AA high temperature battery, interchangeable (ER14335)
- Protection class: IP67
- Dimensions: 18 mm + 115 mm
- Weight: 95 g
