PCE-ITE 50 Insulation Tester

1 AVAILABLE
Availability Info (?)

Order now and the extra items will likely dispatch before the 14th Nov 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.

Product code: PCE-ITE-50

The PCE-ITE is a multifunction wireless insulation tester that also offers insulation resistance, grounding resistance, loop impedance, voltage, low-impedance measurement and RCD test with the camera function.

-With 3.5 inch TFT LCD display with Bluetooth.

-With low resistance measurement.

Read more

$1,649.00 AUD + GST
 $1,813.90 AUD Inc. GST
$1,649.00 AUD + GST
 $1,813.90 AUD Inc. GST
Sale $1,799.00 AUD+ GST
 $1,978.90 AUD Inc. GST

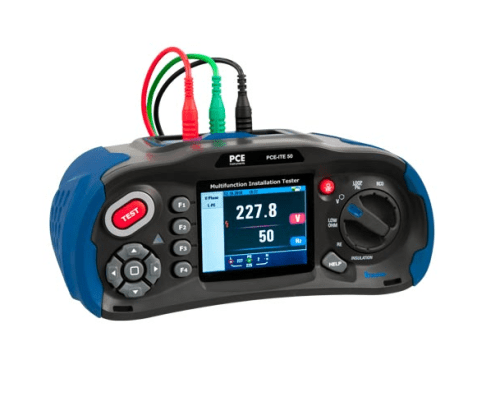

The PCE-ITE 50 is a robust installation tester with a large 3.5" TFT color LCD display. The installation tester PCE-ITE 50 also offers, in addition to the various measuring modes such as insulation resistance, grounding resistance, loop impedance, voltage, low-impedance measurement and RCD test with the camera function, the possibility of documenting suitable photos with the measurements.
With the installation tester PCE-ITE 50, you can ensure that fixed installations are safely and correctly installed. Thanks to the dual display, the intuitive symbols and the high viewing angle, you can comfortably and quickly perform your measurements with the PCE-ITE 50 installation tester. With the low-resistance measurement of the PCE-ITE 50 installation tester, you can check grounding conductors, potential equalization rails and protective conductors for low impedance.
The measuring range for low-resistance measurement with the installation tester PCE-ITE 50 is in the range of 0 - 2000 with a resolution of 0.001 - 1 ohms. Probably the most important measurement of the installation tester PCE-ITE 50 is the measurement of insulation resistance. Electrical cables are placed under voltage during the insulation measurement in order to detect fault currents, Which generate material migration or heat. In most cases, these current faults are so minimal that they are not detected by protective devices and in the worst case they can lead to a fire. The installation tester PCE-ITE 50 can carry out installation measurement with a test voltage of 125V, 250V, 500V or 1000V.
The load current is in each case 1 mA. The PCE-ITE 50 installation tester is independent of the mains supply. In order to bring all systems and circuits of a power supply system to a common potential (ground reference or potential reference) and to protect against short-circuit currents and over voltages, the earthing resistor should be as low-impedance as possible. With a measuring range of 0 to 2000 ohms with a resolution of 0.01 to ohms, the installation tester PCE-ITE 50 offers all the prerequisites for a meaningful measurement of the grounding resistance.
Features:
- 3.5 color TFT LCD display
- Loop resistance L-N, L-PE and N-PE
- Adjustable FI test current
- SD card and Bluetooth
- Dual display
- Good / bad FI test
- Low Ohm measurement
- Up to 1000V terminal voltage
