PCE-CT 27FN-ICA Paint Thickness Tester

ORDER ME IN
Product code: PCE-CT-27FN-ICA

Backorder Now, once ordered your item will dispatch before the 11th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The PCE-CT 27FN is a thickness gauge that takes non-destructive measurements of nonmagnetic coating, insulating layer and dry film thickness (DFT) on metal substrates such as steel and aluminum.

-Made specifically for metallic surfaces, appropriate for measuring layers of paint, ink, plastic, chrome, copper, zinc, enamel, etc.

-Has specially designed external sensor to fit small parts.

-Includes ISO Calibration Certificate.

Read more

$1,009.70 AUD + GST
 $1,110.67 AUD Inc. GST

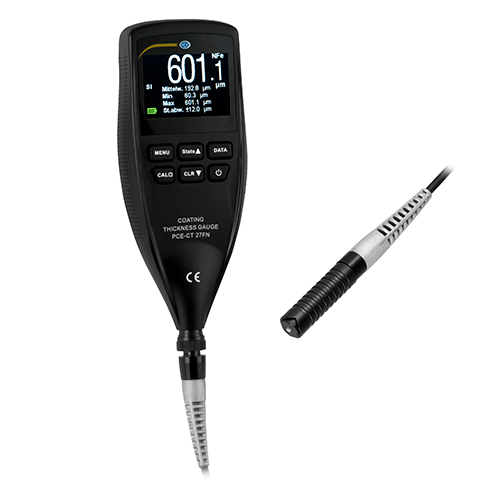

PCE-CT 27FN is a Thickness Gauge that takes non-destructive measurements of nonmagnetic coating, insulating layer and dry film thickness (DFT) on metal substrates such as steel and aluminum. Ideal for surface testing, automotive paint inspection, material testing and manufacturing quality control applications, this Thickness Gauge is designed to measure layers of paint, ink, plastic, chrome, copper, zinc, enamel, paper, glass, rubber and similar materials.
Features:

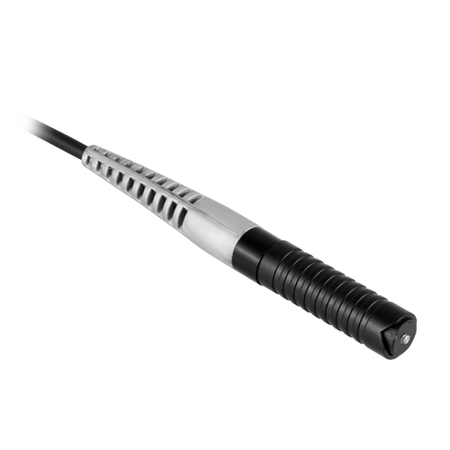

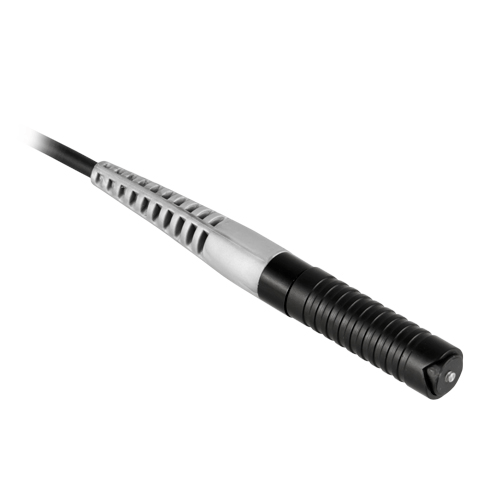

- Has an external sensor with v-groove for reliable measurement on small cylindrical parts

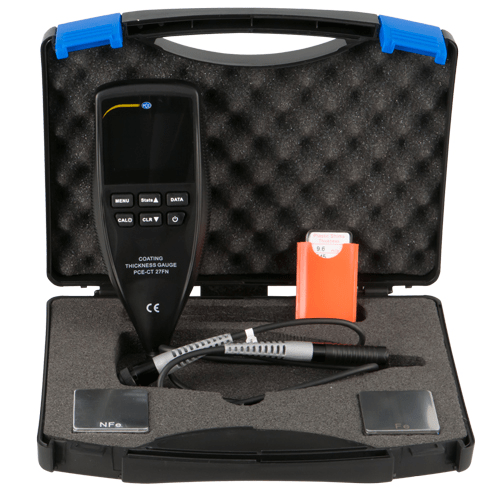

- Includes a set of calibration standards for ferrous and non-ferrous metals

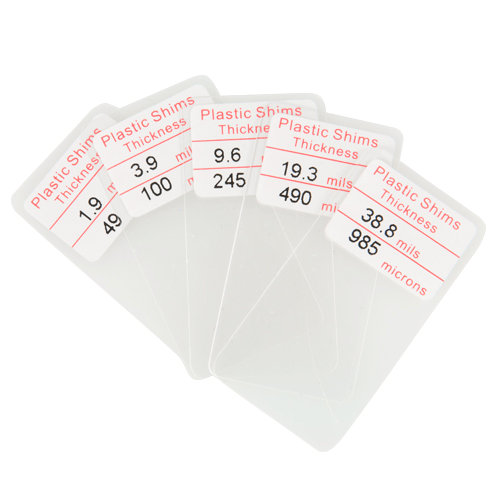

- Supplied with a set of plastic shims or foils

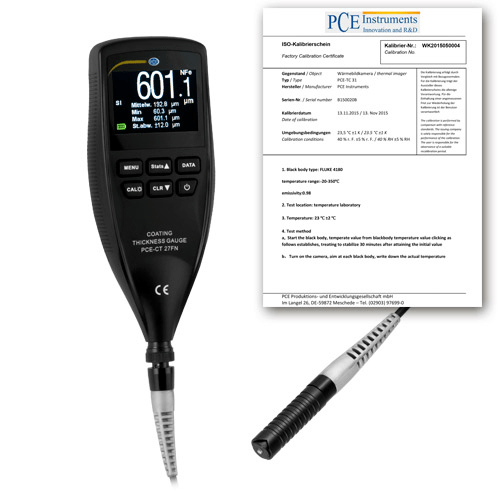

- incl. ISO Calibration Certificate

Specifications

- Measuring range: 0 to 1250 um / 0 to 50 mils
- Accuracy: +/- (2 % + 2 um) / +/- (2 % + 0.1 mils)
- Resolution: 0.1 um / 0.1 mil
- Operating temperatures: -10 to +50 C
- Power: 2x 1.5 V batteries
- Dimensions: 166 mm x 68 mm x 30 mm
- Weight: 180 g
