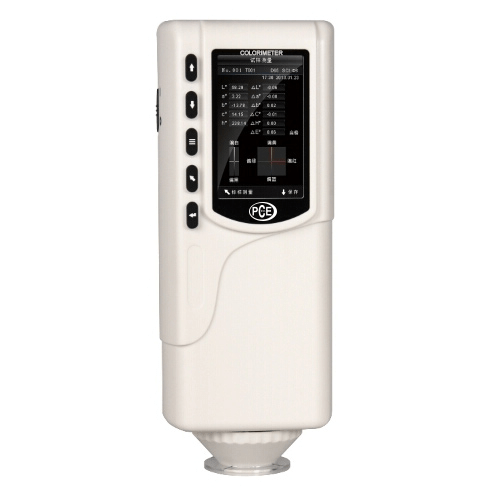

The PCE-CSM 5 is a color meter used to quickly measure the color of surfaces. When using the color meter, you can choose between different color spaces (CIE LAB, XYZ, LCh, RGB, LUV). In addition, the color meter PCE-CSM 5 comes with two different measuring apertures (6mm and 10 mm). After a measurement with the color meter, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.
In addition to the individual color space coordinates, the deviation between the reading is also displayed. When using the color meter, it is possible to store up to 100 reference values and up to 20,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.
- CIE LAB, XYZ, LCh, RGB, LUV
- white calibration
- determination of reference values and samples
- exchangeable measuring apertures
- rechargeable lithium-ion battery
- suitable for many different surfaces
- easy to use
- incl. PC software
- Measuring geometry: 8 degrees /d
- Measuring aperture: 6 mm, 10 mm (exchangeable)
- Sensor Silicon: photoelectric diode
- Color spaces: CIE LAB, XYZ, LCh, RGB, LUV
- Other color parameters: WI ( E313, CIE, AATCC, Hunter ), YI ( D1925, 313), Color Fastness, Staining Fastness, J PC79, BFD(1.5: 1), FMCII
- Observation angle: CIE 10 degrees
- Light source: D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12
- Data on display: colorimetric value, color difference (value/graph)
PASS/FAIL result, color offset
- Measurement time: 0.4 s
- Repeatability: Standard deviation within E*ab 0.03. Average of 30 measurements of standard white plate
- Error between Equipment: E* ab 0. 2
- Storage: 100 reference values, 20,000 samples
- Interface: USB / RS-232
- Display: TFT 2.8 inch (16:9)
- Power supply: Rechargeable lithium-ion battery 3.7 V at 3,200 mAh
- Battery life: approx. 5,000 measurements
- Lamp life: 5 years, more than 1.6 million measurements
- Operating temperature: 0 to 40 C
- Storing temperature: -20 to 50 C
- Dimensions: 205 x 67 x 80 mm
- Weight: 500 g
