PCE-2900-ICA Material Hardness Tester

ORDER ME IN
Product code: PCE-2900-ICA

Order Me In, Once ordered this item will likely dispatch before the 03rd of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The PCE-2900-ICA is wireless material hardness for metals with hardness scales such as Vickers, Rockwell, Brinell, Leeb, Shore and Tensile.

-With backlit display and keypad, appropriate for low-light conditions.

-Transfer your data either through WiFi or USB.

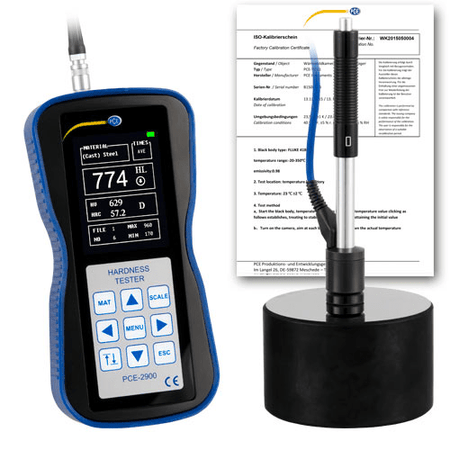

-Includes ISO Calibration Certificate.

This meter is normally priced at $2959+GST!

Read more

$2,959.00 AUD + GST
 $3,254.90 AUD Inc. GST

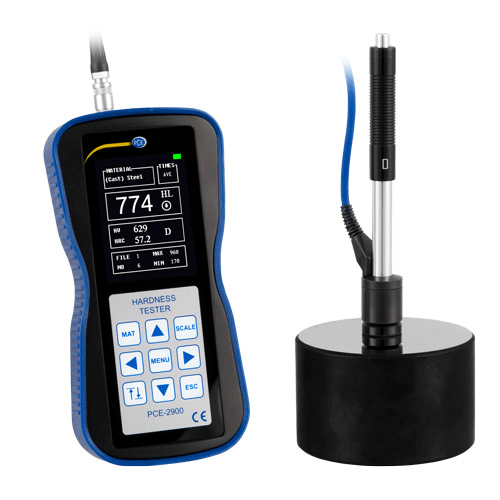

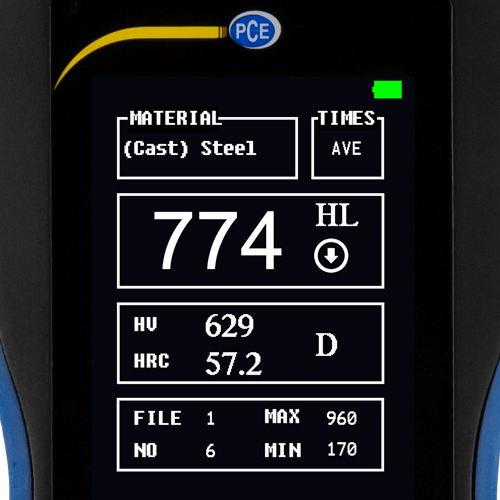

The PCE-2900-ICA is wireless material hardness for metals with hardness scales such as Vickers, Rockwell, Brinell, Leeb, Shore and Tensile. It measures the hardness according to the Leeb rebound principle. An impactor bounces on the workpiece via a firing pin and the metal hardness is measured via the rebound. The PCE-2900 material hardness meter is equipped with a backlit colour display.

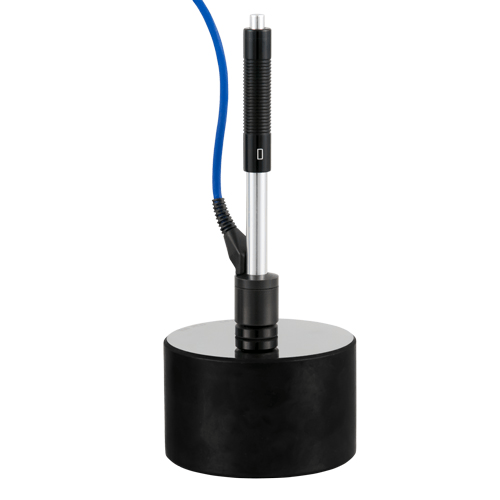

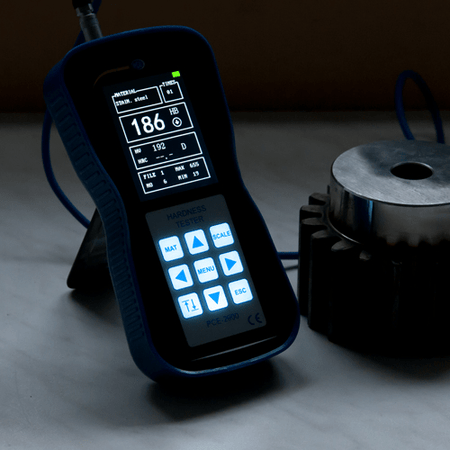

The buttons on the PCE-2900 are illuminated. Thus, the display can be read well even in low light conditions. The impact device is connected to the material hardness tester via a cable. The material hardness tester PCE-2900 has an internal memory of 6 x 100 measurement sets. The memory thus allows a documentation of the measured values. Via the integrated USB and WiFi interface, the measured values can be transferred from the material hardness tester via software to a PC.
The material hardness tester is powered by commercially available 1.5V AA batteries and has a battery life of about 50 hours.
Features:
- USB and WiFi for data transmission
- Large, bright touch-screen LCD display
- Large measuring range
- Measurement possible in every position
- Hardness scales (HRC, HRB, HV, HB, HS)
- For all metallic materials
- Incl. ISO Calibration Certificate

Specifications

- Measuring range: 170 to 960 HLD
- Reproducibility: +/- 6 HLD
- Impactor: Type D
- Measuring direction: 360 degrees
- Adjustable scales: Leeb, Brinell, Rockwell A, Rockwell B, Rockwell C, Vickers, Shore
- Surface quality: Ra of the workpiece 2 um
- Minimum weight of the workpiece: Direct measurement: 5 kg; Tied measurement: 2 to 5 kg; With coupling gel: 0.05 to 2 kg
- Minimum thickness of the workpiece: Direct measurement: greater than 5 mm; With coupling gel: 0.8 to 5 mm
- Display: Colour LCD
- Internal measured value memory: 600 records in 6 files
- Interface: USB, WiFi
- Power supply: 2x 1.5V AA batteries
- Operating time: 50 hours
- Operating conditions: 10 to 50 C, 90%RH
- Storage conditions: -30 to 60 C, 90%RH
- Dimensions: 160 x 80 x 35 mm
- Weight: 350 g
