Kyoritsu | See more Electronic Related Meters

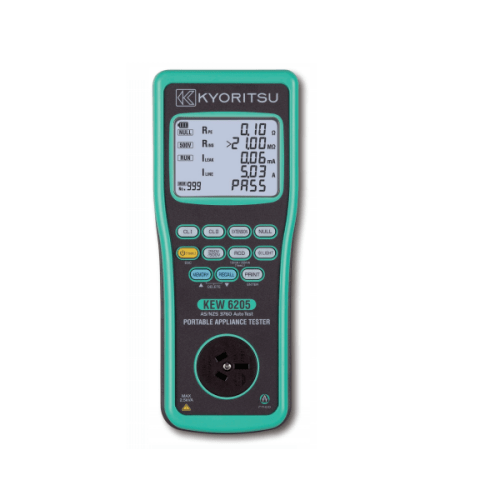

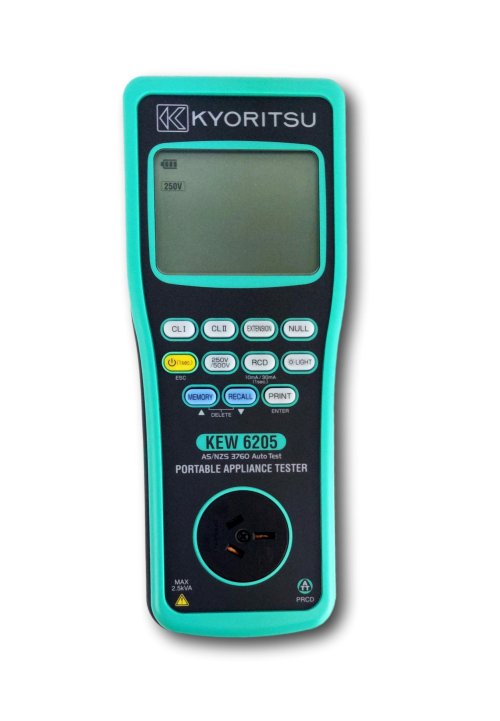

PAT Tester with RCD function, Memory - IC-KEW6205

ORDER ME IN
Product code: IC-KEW6205

Order Me In, once ordered this item will likely dispatch before the 05th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The KEW 6205 is a hand-held, portable appliance tester that can test electrical safety under Class I and II safety standards. The tester indicates PASS/FAIL result testing, complying with the criteria of judgment in the AS/NZS 3760-2010 for in-service safety inspection.

Read more | Need help? 3 Hour Business Reply

$1,332.00 AUD + GST
 $1,465.20 AUD Inc. GST

The KEW 6205 is a hand-held, portable appliance tester that can test electrical safety under Class I and II safety standards. The tester indicates PASS/FAIL result testing, complying with the criteria of judgment in the AS/NZS 3760-2010 for in-service safety inspection.

Specifications


Test function (Class I):
- Protective conductor resistance (Test current 200mA DC nominal)
- Insulation resistance test (250V or 500V)
- Leakage current test (100-253V/50Hz)
- Load current test (100-253V/50Hz)
Test function (Class II):
- Insulation resistance test (250V or 500V)
- Leakage current test (100-253V/50Hz)
- Load current test (100-253V/50Hz)
Extension Lead Test:
- Protective conductor resistance (Test current 200mA DC nominal)
- Insulation resistance test (between Line/Neutral-Earth short, Line/Neutral)
- Leakage current test (100-253V/50Hz)
- Polarity test
Mains voltage indication:
- Display range: 30V-270V
- Accuracy: +/- 5V
Protective conductor resistance test:
- Measuring range: 0.00-20.00 ohms
- Open circuit voltage: 5V +/- 0.4V DC
- Measuring current: 200mA DC(nominal value)
- Accuracy: +/- 3%rdg, +/- 5dgt
Insulation resistance test:
- Rated voltage: 250V/500V
- Measuring range: 0.00-20.00M ohms
- No-load voltage: 250V DC +20%,-0%500V DC +20%,-0%
- Short circuit current: 1.5mA DC or less
- Accuracy: +/- 2%rdg, +/- 3dgt
Load current/Leakage current test:
- Item: Load current/Leakage current
- Mains voltage range: 100-253V/50Hz
- Measuring range: 0.10-10.00A rms/0.10-20.00mA rms
- Accuracy: +/- 10%rdg, +/-5dgt/ +/-3%rdg, +/-5dgt
RCD test:
- Rated voltage: 230V -15% - +10%/50Hz
- Rated current: 10mA/30mA
- Function: x1/x5
- Test duration: 0.0ms-500.0ms/0.0ms-40.0ms
- Operating time accuracy: +/- 2ms(less than or equal to 40ms),+/- 8ms( greater than 40ms)
General:
- Power source: LR6(AA)(1.5V) x 6
- Applicable Standards: IEC/EN61010-1 CAT II 300V, IEC/EN61010-2-030, IEC/EN61010-031, EN61326-2-2, AS/NZ3760
- Dimensions / Weight: 261(L) x 104(W) x 57(D)mm / Approx. 930g(including batteries)
