Backorder Now, once ordered your item will dispatch before the 31st of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$440.00 AUD Inc. GST

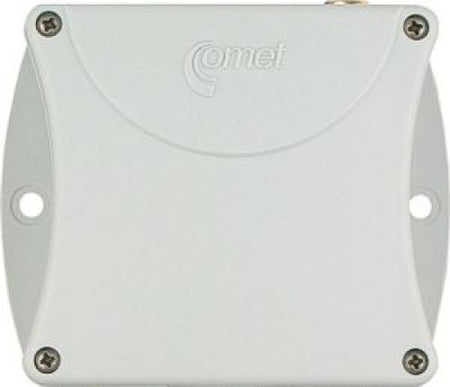

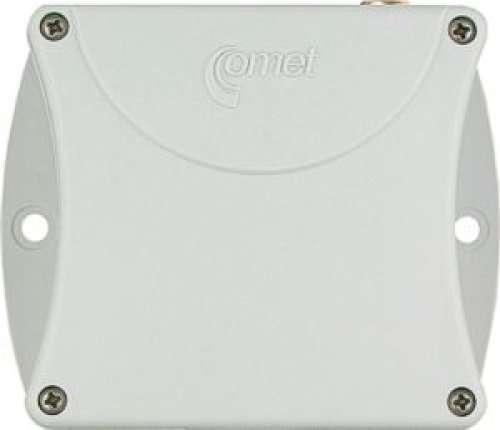

Also known as: industrial Ethernet, remote server environment monitoring, computer room monitor, data center thermometer, temperature IP sensor, computer room temperature alert. Online Ethernet thermometer is designed for online temperature measurement and measurement from up to four external temperature cable probes. Measurement in degrees Celsius and degrees Fahrenheit supported. Online thernet thermometer is built in a durable plastic case.
APPLICATIONS - online measuring and control of temperature at:
* building HVAC management
* building HVAC automation
* industrial Ethernet
* server rooms
* telecommunication devices
* warehouses
* glasshouses
* manufacturers
* museums, archives, galleries
* air-conditioned rooms
MODES OF COMMUNICATION
| Modbus TCP: | Modbus TCP protocol enables to read measured values, set alarm limits, adjust the probe. |
| Telnet: | Port 9999 enables to set alarm limits (lower, upper limits, hysteresis for temperature and time delay), e-mail addresses, SNMP addresses, probe description, refresh of www pages (10s to 65535s), set storing interval to history (10s to 65535s), enable each communication channel. Capacity of the history memory is 600 values. Password protection of this port is enabled. Automatic IP address assignment from DHCP server is also enabled. |
| WWW pages: | User selectable design of www pages enabling to display curve of measurement history. User can design the look of www pages and temperature history. Online temperature, humidity, pressure in Roznov, Czech Republic from similar Comet internet www sensor T7511 |
| SNMP: | It is possible to read actual values and alarm limits. In case of alarm creation warning message (trap) is sent to addresses defined by the user (maximum three addresses). |
| SOAP: | Online transmitter enables to send actual measured data in the format of SOAP message to selected web server in preset interval 10-65535 s. In case message is not received by the server till next message is sent, warning trap 1/2 is sent. |
| Online thermometer enables to monitor measured values. In case of exceeding of adjusted limits warning message can be sent to specified addresses. There are the following options of alarm indication: |
ALARM INDICATION OPTIONS
| E-mail: | In case of alarm creation warning e-mail message is sent to addresses defined by the user (maximum three addresses) or via e-mail to SMS message. |
| SNMP: | In case of exceeding of adjusted temperature limits alarm is activated and warning trap is sent to user specified IP addresses (maximum 3 addresses). |
| WWW pages: | In case of exceeding of adjusted temperature limits active alarm is displayed on www page. |
| syslog: | Online thermometer enables to send text messages to selected syslog server after different events appear. E.g. after thermometer restart, alarm activation, communication error with SNTP, write to thermometer via mdb, sntp, after firmware change, after alarm termination, after communication error with SOAP server. |
| Synchronizing of time and record to www table and temperature history is enabled by SNTP via Internet. |
TECHNICAL PARAMETERS
| Supported physical units: | degrees Celsius, degrees Fahrenheit |
| Supported temperature sensors: | Digital temperature sensor Dallas DS18B20 |
| Measuring range: | -55 to +80C, -30 to +80C model P8510 |
| Accuracy: | 0.5C from -10 to +80C, 0.8C model P8510 |
| Resolution: | 0.1C |
| Sampling interval: | 2 s |
| Memory capacity for temperature history: | 600 values, export to CSV file enabled |
| Interval for temperature history record: | adjustable from 10 s to 18 h |
| Temperature operating range: | -30 to +80C |
| Temperature operating range of LCD display: | readable to operating temperature +70C, it is recommended to switch OFF the LCD over +70C |
| Protection of the case: | IP30 |
| LAN connection: | RJ-45 connector |
| Power: | 5Vdc, maximum consumption 250mA. For power over Ethernet any PoE splitter is necessary e.g. DWL-P50 from D-Link company |
| Power connector: | co-axial, diameter 5.5 x 2.1 mm |
| Dimensions of the P8510 case: | 88 x 126 x 39,5 mm (W x H x D) |
| Dimensions of the P8511,P8541 case: | 88 x 74 x 39,5 mm (W x H x D) |
| Weight: | 240 g |
| Warranty: | two years |
