8 Channel Rtd Based Temperature Logger With Screw Terminals

DISCONTINUED
Product code: OctRTD

Unfortunately, the OctRTD has been discontinued, checkout our other Temperature Loggers for more alternatives.

8 Channel, 100 Ohm RTD Based Temperature Data Logger with Screw Terminals

Read more | Need help?

Unfortunately, the OctRTD has been discontinued, checkout our other Temperature Loggers for more alternatives.

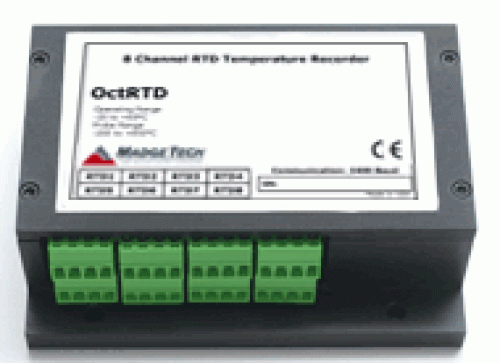

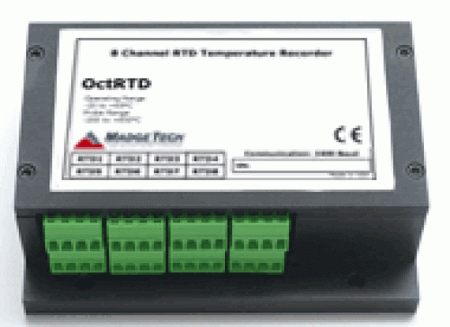

The OctRTD is an 8 channel, battery powered, stand alone, RTD based temperature data logger. This is an all-in-one compact, portable, easy to use device that will measure and record data for up to 10,922 measurements per channel. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from your computer and its small size allows it to fit almost anywhere. The OctRTD makes data retrieval quick and easy. Simply plug the data logger into an empty COM or USB port and our user-friendly software does the rest.


Specifications

Temperature

Temperature Sensor

External: 2,3, or 4 wire 100 Ohm Platinum RTD

Temperature Range

-200 to +850C

Temperature Resolution

0.01C

Temperature Calibrated Accuracy

0.1C


General

Memory

10,922/channel

Reading Rate

2 seconds up to 12 hours

Baud Rate

2,400

Channels

8

Battery Life

1 year

Material

Anodized aluminum

Dimensions

3.5" x 4.4" x 1.5", (89mm x 112mm x 39mm)

Operating Environment

-20~+60C, 0~95%RH non-condensing

Required Interface Package

IFC110 or IFC200
