8 Channel, Battery Powered, Low Level Dc Current Data Logger
Unfortunately, the OctProcess has been discontinued and has been replaced by the CurrentX-8.
Unfortunately, the OctProcess has been discontinued and has been replaced by the CurrentX-8.

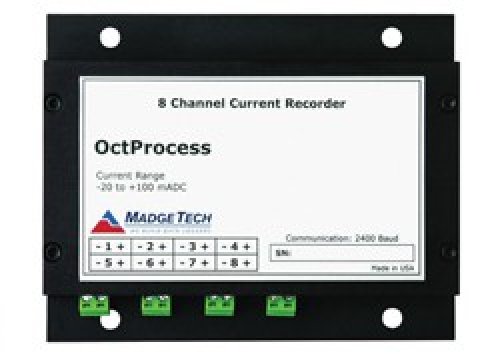

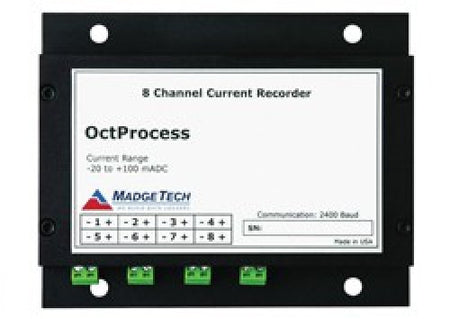

The OctProcess is an eight channel, battery powered, stand alone low level DC current data logger. The device records time and date stamped DC current
data from external sensors, transducers and many other sources.
The data logger features user-programmable Engineering Units and offset/gain calculations so input signals can be scaled to proper units being measured.
For example, a water meter with a 4-20mA output can be displayed as liters or gallons, etc., in the software graph and data. Negative current signals
can be monitored and recorded, for a broad range of applications.
Three different DC current ranges are available 1mA, 25mA or 100mA. This is an all-in-one compact, portable, easy to use device that will measure
and record data for up to 16,383 readings per channel. The storage medium is non-volatile solid state memory, providing maximum data security even
if the battery becomes discharged. The device can be started and stopped directly from your computer and its small size allows it to fit almost anywhere.
The OctProcess makes data retrieval quick and easy. Simply plug it into an empty COM or USB port and our user-friendly software does the rest.
Specifications
Current
Current Range |
1mA, 25mA , 100mA
|
|---|---|
Current Resolution |
1mA: 0.05A
25mA: 1A 100mA: 5A |
Current Calibrate Accuracy |
1mA: 0.5%FSR at 25C
25mA and 100mA: 0.1%FSR at 25C |
Current Input Impedance |
1: 50
25mA: 10 100: 2 |
General
Memory |
16,383 readings per channel
|
|---|---|
Reading Rate |
1 second up to 12 hours
|
Baud Rate |
2,400
|
Channels |
8
|
LED Indicators |
None
|
Battery Life |
1 year
|
Material |
Anodized aluminum
|
Dimensions |
3.5" x 4.4" x 1.5" (89mm x 112mm x 39mm)
|
Operating Environment |
-20~+60C, 0~95%RH non-condensing
|
Required Interface Package |
IFC110 or IFC200
|
Product Tables
Nominal Range |
1mA
|
25mA
|
100mA
|
|
|---|---|---|---|---|
Measurement Range |
1.5mA
|
30mA
|
120mA
|
|
Input Range |
0 to 2.5V
|
|||
Resolution |
0.05A
|
1A
|
5A
|
|
Calibrated Accuracy at 25C |
0.5%FSR at 25C
|
0.1%FSR at 25C
|
||
Input Imedence |
50
|
10
|
2
|
|
