NANOVIP Cube 247 (With 3x 1000A Clamps) - IC-4NAN3247D

ORDER ME IN
Product code: IC-4NAN3247D

Order Me In, Once ordered this item will likely dispatch before the 16th of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

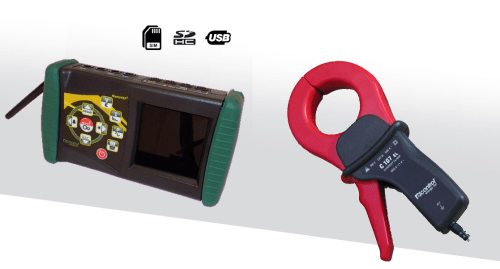

The NanoVIP Cube 247 is a power quality analyzer that offers 3G connectivity that allows it to share measured data through several connection options, approrpiate for remote monitoring. Has two connection modes, either sending alerts through SMS or Push notifications. Includes 3 1000A clamps.

Read more

$6,764.00 AUD + GST
 $7,440.40 AUD Inc. GST

NanoVIP CUBE 247 is a powerful and versatile Power Quality Analyzer that thanks to the implementation of 3G technology allows the user to consult the measured data through the connection option that best fits with the environmental conditions found on the measuring site.

Thanks to 3G connectivity, NanoVIP CUBE 247 can help user to monitor measures from remote and to be informed about main device and measure status.
NanoVIP CUBE 247 offers the following 3G connection modes:
- SMS: the analyzer can send to user SMS messages about main status of device, measures alarms as well as events.
- PUSH: NanoVIP CUBE 247 connects to the cloud server of Elcontrol cloud.elcontrol- energy.net; this mode is particularly useful if you want to remotely monitor the progress of a measurement started many miles away and do not have access from the outside to the local network.
Features:
- Can work on networks: single-phase, two-phase, three-phase balanced with or without neutral, three-phase unbalanced with or without neutral
- It includes all the NanoVIP CUBE features.
- It includes Elcontrol cloud connectivity
- It can send SMS infos about device status, measure alarms and events
- Available WiFi mode: Access point, Remote polling, Cloud monitoring
- One Shot UPS function to easily measure UPS™ systems efficiency
- Continuous sampling Oscillo function
- Network outages, surges, sags
- Conformance testing to EN 50160
- Real measurement of the neutral current
- Display of the waveforms of currents and voltages
- 4 tariff bands setting with the related costs display
- Configuration and display of alarms on sizes 20 and settable
- Display of the time course of selectable parameters (trend)
- Automatic check of the correct connection of the implant tool
- Realization of long-term measurement campaigns (over 24 independently, unlimited if
connected to the network)
- Multi Language

Specifications

Measures:
- Display data refresh: 1 sec.
- Voltage (TRMS): 4 input channels (3 + common neutral + 1 auxiliary)
- Current (TRMS): 5 input channels
- Power: Active, reactive and apparent. Single phase and total
- Energy counters: kWh, kvarh, kVAh
- Harmonics analysis: Up to 50
- EN50160 analysis: from 500mS up
- EN61724 analysis: potentially unlimited
- Test CEI 82-25: no
- Transactional analysis: Overcurrent, overvoltage and starting currents
Functions:
- Power analysis: V, I, P, Q, S, F, PF, THD(V)%, THD(I)%, cosj, j, peaks, min, max,
mid, max. demand, ecc.
- Counters: kWh, kVArh, kVAh (used and generated)
- Waves shape: V e I
- Harmonics: Values and spectrum up to 50
- Sags: Dips, swells and net interruption
- Transitory: Overcurrent and overtension
- 3G connectivity
- K factor: Up to 25
- Alarms: Video
- Alarms logs: 5 on video
- Hourly tarifs: up to 4
- Standalone mode
- Single phase/Double phase networks
- Three phase 4 wires, balanced networks
- Three phase 3 wires, balanced networks
- Three phase 4 wires, unbalanced networks
- Three phase 3 wires, unbalanced networks
General:
- Safety: 600V CAT III
- Protection degree: IP30
- Display type: LCD dot matrix with backlight
- Communication: USB to PC, wireless to/from master device
- Onboard memory: 64kB
- External memory: Micro SD (4GB supplied)
- WiFi connectivity: yes
- WiFi operating mode: Access point, Remote monitoring, Cloud monitoring
- Weight: 580g
