Home > N9002 Dual channel industrial thermometer T/C
Comark

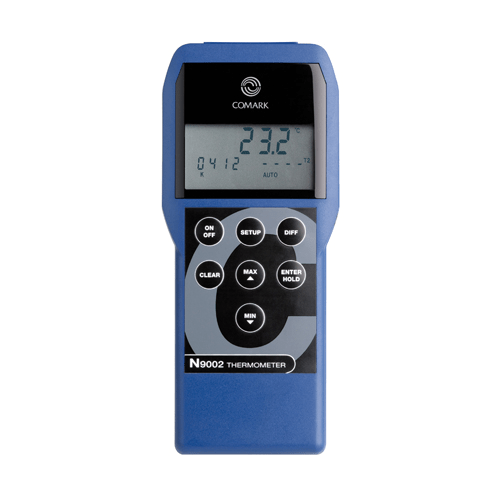

N9002 Dual channel industrial thermometer T/C

DISCONTINUED
Product code: KM-N9002

Unfortunately, the KM-N9002 has been discontinued, check out our other Temperature Meters for more options.

Rugged, waterproof, dual-channel thermometer designed for industrial use. It accepts all common thermocouple types as inputs and is particularly accurate in linearity and especially in cold junction accuracy.

-Resolution – 0.1° below +1000°, 1° above (auto ranging). Accuracy at +23°C <±0.1% of reading ±0.2°C.

-Compatible with type K, N, T, J, R, S thermocouples.

-Environmental Protection IP67.

Read more

Unfortunately, the KM-N9002 has been discontinued, check out our other Temperature Meters for more options.
Electronic thermometer with eight thermocouple compatibilityfor maximum versatility in industrial, heating, ventilating, air conditioning and refrigeration.
The N9002 is compatible with 8 thermocouple types - K, N, T, J, R, S, E and B. As well as an overall temperature measurement capability ranging from -200C to +1820C, it allows users to selectthe best thermocouple for the application.
Twin sub-miniature probe connectors also allow differential temperatures to be measured, with readings displayed in C, F or K. It can also be used as a conventional thermometer when a single probe is connected. Comarks IP67 rated premium case adds to the instruments versatility.
Features:
- Sensor type thermocouple K, N, T, J, R, S
- Measurement range thermocouple Type K -200C to +1372C
- Thermocouple Type N -200C to +1300C
- Thermocouple Type T -200C to +400C
- Scales C, F, K
- Resolution 0.1 below +1000, 1 above (autoranging)
- Accuracy at +23C <0.1% of reading 0.2C
- Operating Temperature Range -25C to +50C
- Environmental Protection IP67

Specifications

- Sensor Type: Thermocouples types K, N, T, J, R, S ,E, B
- Measurement Range: -200C to +1820C depending on sensor
- Thermocouple Type K measurement range: -200C to +1372C, -328F to +2502F
- Thermocouple Type N measurement range: -200C to +1300C, -328F to +2372F
- Thermocouple Type T measurement range: -200C to +400C, -328F to +752F
- Thermocouple Type J measurement range: -200C to +1200C, -328F to +2192F
- Thermocouple Type R and S measurement range: -50C to +1767C, -58F to +3212F
- Thermocouple Type E measurement range: -200C to +1000C, -328F to +1832F
- Thermocouple Type B measurement range: +100C to +1820C, +212F to +3308F
- Calibration: BS EN 60584 thermocouples (ITS90)
- Scales: C, F, K
- Displayed Resolution: <+1000C: 0.1C, <+1000C:1.0C
- Instrument Accuracy at 23CType K only<0.1% of reading 0.2C/0.4F
- Connector Type: Sub-miniature
