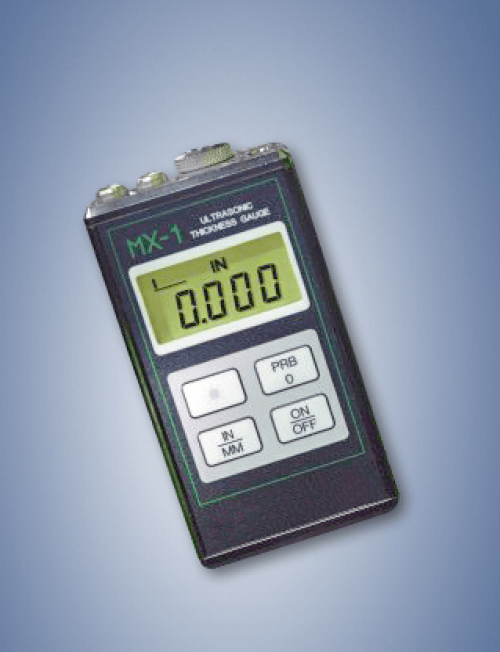

MX-1 Ultrasonic Wall Thickness Gauge

DISCONTINUED
Product code: IC-MX-1

Unfortunately, the MX-1 has been discontinued and replaced by the ZX-1.

Wall thickness gauge with key selectable velocity. The MX-1 will hold a single velocity, making it the perfect choice applications where only one material is being tested day after day. With the preset velocity in the gauge, you simply turn it on and go to work.

Read more

Unfortunately, the MX-1 has been discontinued and replaced by the ZX-1.

The MX-1 will hold a single velocity, making it the perfect choice applications where only one material is being tested day after day. With the preset velocity in the gauge, you simply turn it on and go to work.

The tool's backlit display is easy to read, even in dim light conditions, and the unit operates for up to 200 hours on a single set of AA batteries.
The MX-1 comes complete, ready to use, and is protected by Dakota Ultrasonics 5 year limited warranty.
Applications:
- Corrosion & Pitting
- Tube & Pipe
- Tanks
- Boilers
- Glass
- Variety of Applications
Features:
- Multi-function 4.5 digit liquid crystal display with 0.500 inch numerals, backlit for use in poor light conditions.
- Measurements displayed in inches, inches/microsecond, millimeters, and meters/second.
- Measures from 0.025 to 19.999 inches (0.63 to 199.99 millimeters) switch to select English or metric units.
- Four readings per second for single point measurements.
- IP 65 Rated
- The MX-1 is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case.

Specifications

- Measuring Range: 0.025 to 19.999 inches (0.63 to 199.99 millimeters)
- Resolution: 0.001 inch (0.01 millimeter)
- Velocity Range: 0.0492 to .3937 in/us. 1250 to 10,000 meters/sec
- Dimensions: 2.5 W x 4.75 H x 1.25 D inches
- Range in Steel: 0.040-6.000" (1.00-150.0 mm) with supplied probe. Other probes available.
- Resolution: 0.001" (0.01 mm)
- Display: 4.5 - Digit, 0.5" Backlit LCD
- Probe: 1/4", 5 MHz, actual wearface is 5/8" (17mm)
- Cable: 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
- Temp. Limits (Ambient): -20 to 120 F (-30 to 50 C)
- Temp. Limits (Material): -0 to 200 F (-20 to 100 C)
- Battery Type: Two 1.5V alkaline or 1.2V NiCad AA cells.
- Battery Life: Typically operates for 200 hours on alkaline and 130 hours on NiCad.
- Weight: 10 ounces (283 g)
- Accessories Included: Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
