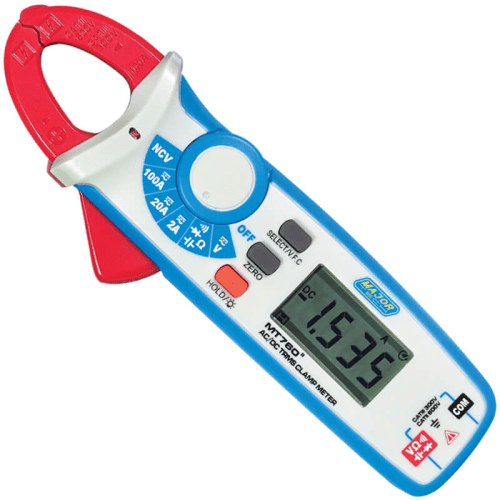

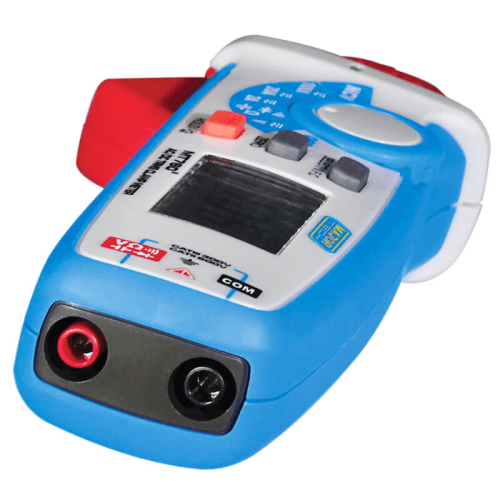

MT760 100A AC/DC Clamp Meter

ORDER ME IN
Product code: MT760

Order Me In, Once ordered this item will likely dispatch before the 10th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The MT760 100A AC/DC Clamp Meter is rated CAT III 300V and has a 2000 count display with a resolution of 1mA. The MT760 has a compact design, high reliability and safety, and provides fast sampling time with high accuracy and all readings are indicated on a large backlit LCD display.

  • Measures 600V AC/DC, capacitance, resistance measurements, plus a continuity buzzer and diode test function.
  • The VFC function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives.
  • Offers other features such as Zero/Relative mode for Capacitance Zero, resistance, DCV, ACV, DCA and ACA offset adjustment, etc.

Read more

$199.50 AUD + GST
 $219.45 AUD Inc. GST
The MT760 100A AC/DC Clamp Meter is rated CAT III 300V and has a 2000 count display with a resolution of 1mA. The MT760 has a compact design, high reliability and safety, and provides fast sampling time with high accuracy and all readings are indicated on a large backlit LCD display. The meter measures 600V AC/DC, capacitance, resistance measurements, plus a continuity buzzer and diode test function. The VFC function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives.
This 100A AC/DC Clamp Meter has added features which include Zero/Relative mode for Capacitance Zero, resistance, DCV, ACV, DCA and ACA offset adjustment and Non- Contact voltage detection. Housed in a modern double moulded rubber housing.
Features:
- CAT III 300V and CAT II 600V
- 17mm dia. Cable Clamp size
- AC and DC Voltage: 600V
- AC and DC Current: 100A
- AC VFD Voltage: 600V
- Resistance: 20 megaohms
- Capacitance: 20mF
- 2000 count backlit LCD display.
- VFC Variable Frequency Drive voltage value
- Microprocessor Zero adjustment
- NCV Non-Contact Voltage Detector
- Continuity buzzer and Diode Test
- Data Hold function
- Auto Power Off

Specifications

- DC Current: 1mA 100A x 1mA +/- (2% + 3 Digits)
- AC Current: 1mA 100A x 1mA +/- (2.5% + 5 Digits)
- DC Voltage: 0.1mV 600V x 0.1mV +/- (0.7% + 3 Digits)
- AC Voltage: 1mV 600V x 1mV +/- (1% + 3 Digits)
- AC Voltage VFD: 200.0V 600V 100mV +/- (4% + 3 Digits)
- Resistance: 200.0 ohms 20.00 megaohms x 0.1 ohms +/- (1% + 2 Digits)
- Capacitance: 2nF to 20.00mF x 1pF +/- (4% + 5 Digits)
- True RMS Measurements: ACA, ACV
- AC Bandwidth: 50Hz to 400Hz
- Digital Display: 2000
- Non-Contact Voltage (NCV): Yes
- Overrange Indication: Yes
- Continuity: Yes
- Diode Test: Yes
- Jaw Size: 17mm
- Input Impedance: greater than 1 megaohms DCV and greater than 1 megaohms VAC
- Min Max: Yes
- Data Hold: Yes
- Back Light: Yes
- Enclosure: Over moulded case
- Low Battery Indication: Yes
- Batteries: 2 x AAA
- Weight: 170g
- Dimensions: 175 x 60 x 34mm
- Safety Specs: IEC61010-1 CAT II 600V
