Major Tech | See more Electronic Related Meters

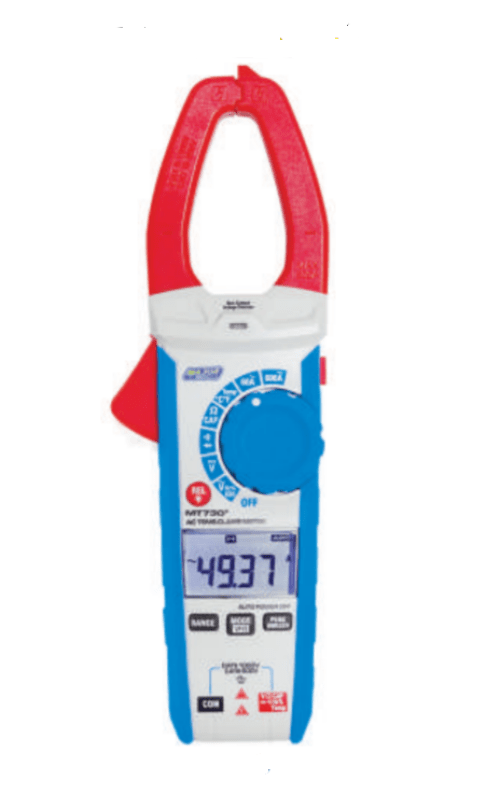

MT730 600A AC Clamp Meter

ORDER ME IN
Product code: MT730

Order Me In, Once ordered this item will likely dispatch before the 14th of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The MT730 is a CAT III 600V, 6000 count True RMS 600A AC digital clamp meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy.

-Measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value.

-33mm Cable Clamp size.

Read more

$155.00 AUD + GST
 $170.50 AUD Inc. GST
The MT730 is a CAT III 600V, 6000 count True RMS 600A AC digital clamp meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value.
The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.
Features:
- 6000 count backlit LCD display
- 33mm diameter Cable Clamp size
- Measurement of DC voltage and AC voltage up to 1000V
- Capacitance to 100mF
- Temperature measurement from -20 to 1000 C
- INRUSH Current Measurements
- VFD - Variable Frequency Drive voltage value
- NCV - Non-Contact Voltage Detector
- Built-In Flashlight
- Continuity buzzer and Diode Test
- Peak Mode and Data Hold function
- Auto Power Of

Specifications

- AC Current: 60.00A to 600A +/- (2.0% +8)
- DC Voltage: 6.000V to 1000V +/- (1.0% +3)
- AC Voltage: 6.000V to 1000V +/- (1.2% +5)
- Resistance: 600.0 ohms to 60 megaohms +/- (1.5% +2)
- Frequency: 10Hz to 100kHz +/- (1.0% +5)
- Capacitance: 99.00nF to 100mF +/- (3.0% +5)
- Temperature: -20 to 1000 C +/- (3.0% +3 C)
- Duty Cycle: 20.0% to 80% +/- (1.2% +10)
- Size: 239 x 72 x 40mm
- Weight: 318g
