Major Tech | See more Electronic Related Meters

MT700 200A AC Clamp Meter

ORDER ME IN
Product code: MT700

Order Me In, Once ordered this item will likely dispatch before the 14th of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The MT700 is a CAT IV 600V, 2000 count True RMS 200A AC digital clamp meter. Also measures Resistance, Rotary Field Indication, continuity buzzer, data hold, built-in flashlight plus Non-Contact Voltage detection.

-Measures DC voltage and AC voltage up to 1000V on LCD, LED indication of AC and DC voltage from 12V to 1000V.

-16mm diameter cable clamp size.

Read more

$207.00 AUD + GST
 $227.70 AUD Inc. GST

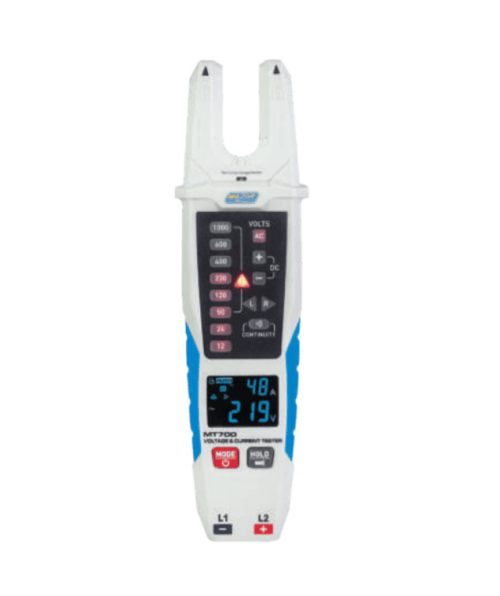

The MT700 is a CAT IV 600V, 2000 count True RMS 200A AC digital clamp meter with indication on a large backlit negative LCD display,
with a clamp jaw opening of 16mm. A superb feature for electricians is the ability to simultaneously measure current and voltage and view both readings on the LCD display.
The MT700 measures AC and DC voltage up to 1000V and displays the reading on both the LED and LCD displays. This open jaw clamp meter is designed to assist in the ease of measuring current in crowded or tight cable areas, as the jaws need only be pushed over the wire to obtain accurate readings.
Added features include resistance measurements, Rotary Field Indication, continuity buzzer, data hold, built-in flashlight plus Non-Contact Voltage detection. Housed in a modern double moulded rubber housing with a rugged design for heavy duty use.
Features:
- 2000 count negative LCD display
- Open Jaw Sensor
- 16mm diameter cable clamp size
- Simultaneously displays voltage and current measurements
- Measures DC voltage and AC voltage up to 1000V on LCD
- LED indication of AC and DC voltage from 12V to 1000V
- Resistance measurement to 2000 ohms
- Rotary Field Indication
- NCV - Non-Contact Voltage Detector
- Built-In Flashlight
- Continuity buzzer and Data Hold function
- Auto Power Of

Specifications

- AC Current: 200A +/- (3.5% +5)
- DC Voltage LCD: 6V to 1000V +/- (3.0% +5)
- AC Voltage LCD: 6V to 1000V +/- (3.0% +5)
- DC Voltage LED: 12V to 1000V Complies with EN 61243-3:2014
- AC Voltage LED: 12V to 1000V Complies with EN 61243-3:2014
- Resistance: 0 to 2000 ohms +/- (5.0% +10)
- Rotary Field Indication: 100V to 1000V LED
- Size: 250 x 78 x 40mm
- Weight: 350g
