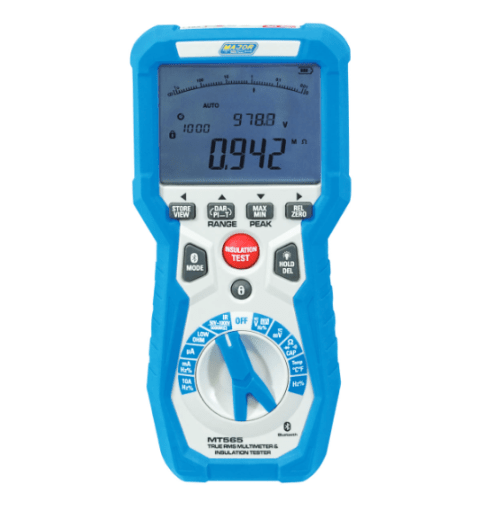

MT565 True RMS Multimeter and Insulation Continuity Tester

ORDER ME IN
Product code: MT565

Order Me In, Once ordered this item will likely dispatch before the 14th of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The MT565 combines a digital insulation tester with an insulation tester in one handy unit.

-Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency (electrical and electronic), duty cycle.

-5 insulation test ranges (50V, 100V, 250V, 500V, 1000V).

-Built with IP65 waterproof housing.

Read more

$895.00 AUD + GST
 $984.50 AUD Inc. GST
The MT565 is a combination of a True RMS multimeter and an Insulation Continuity tester. The MT565 measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle and temperature.
The low pass filter can accurately measure variable frequency drive (VFD) signals. The insulation tester offers 50V, 100V, 250V, 500V, and 1000V ranges with an insulation resistance up to 5000M, DAR and Auto PI functions with adjustable time setting and an auto discharge.
The low Ohm function offers a resolution of 1mA and an open circuit voltage of 5V. The meter has a 50 000 count LCD dual display with an analogue bar graph, and the CAT IV 600V rating ensures the highest level of safety.
The unit offers Bluetooth communication and an internal memory to store and transfer information. The Bluetooth app is available on both Android and iOS platforms. This provides maximum versatility and a wide range of features for both trouble shooting and preventative maintenance electricians.
Features:
- 5 insulation test ranges 50V, 100V, 250V, 500V, 1000V
- Insulation Resistance up to 5G
- 50,000 count with analogue bar graph backlit LCD display
- Measures AC and DC voltage up to 1000V
- Measures AC and DC current up to 10A
- Temperature measurement from -20C to 1000C
- Capacitance to 10mF
- Frequency to 10MHz
- Dielectric Absorption Ratio (DAR)
- Polarization Index (PI)
- Low Pass Filter for measurement of variable frequency drive (VFD)
- Auto discharge of voltage test signal
- Peak Hold function for Voltage and Current measurements
- Download stored data to iOS or Android App via Bluetooth
- Continuity buzzer
- Min/Max and Data Hold function
- Auto Power Off
- IP65 double moulded rugged waterproof housing
Functions
Insulation:
- 50V to 2000 megaohm: 1mA at 50 kiloohm +/- (4.0% +5)
- 100V to 5000 megaohm: 1mA at 100 kiloohm +/- (4.0% +5)
- 250V to 5000 megaohm: 1mA at 250 kiloohm +/- (3.0% +5)
- 500V to 5000 megaohm: 1mA at 500 kiloohm +/- (3.0% +5)
- 1000V to 5000 megaohm: 1mA at 1 megaohm +/- (4.0% +5)
Low Ohm Meter:
- Resistance: 0.000 to 2000 ohm +/- (2.0% +5)
- Open Circuit Voltage: 5.0V +/- 1V
- Measuring Current: 200mA
Multimeter:
- DC Voltage: 500mV to 1000V +/- (0.1% +4)
- AC Voltage: 500mV to 1000V +/- (0.1% +5)
- DC Current: 500uA to 10A +/- (1.0% +3)
- AC Current: 500uA to 10A +/- (1.5% +3)
- Resistance: 500 ohm to 50 megaohms +/- (0.5% +3)
- Frequency: 50Hz to 50MHz +/- (0.3% +2)
- Capacitance: 500nF to 5mF +/- (3.5% +9)
- Temperature: -50 to 1200 C +/- (1.0% +2.5 C)
