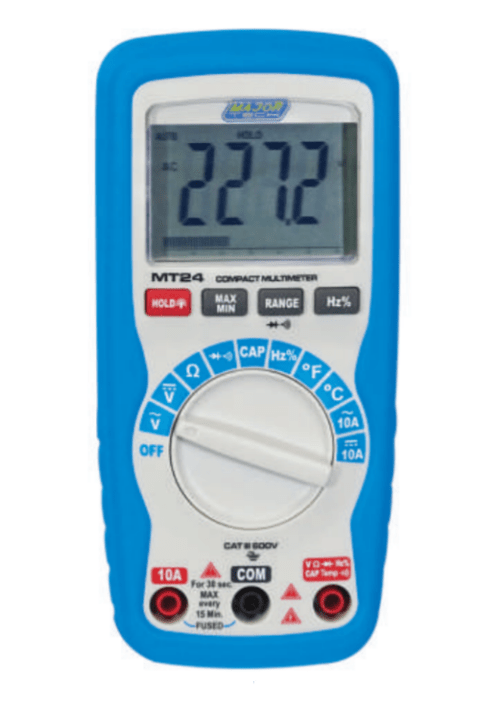

MT24 Compact Multimeter with Bar Graphs

ORDER ME IN
Product code: MT24

Order Me In, Once ordered this item will likely dispatch before the 14th of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The MT24 is a compact, robust, meter with double moulded rubber housing and meets the International Standard IEC-61010-1 CAT lll 600V.

-Measures AC and DC Voltage to 1000V.

-Features include MIN/MAX recordings, Data Hold, Frequency measurement with Duty Cycle, Capacitance measurement of up to 4000uF and resistance
of 60 megaohms

-6000 Count LCD with bargraph and Backlight for dimly lit areas.

Read more

$129.00 AUD + GST
 $141.90 AUD Inc. GST
The MT24 is an autoranging multimeter with the option of manual override, and has a 6000 count LCD display with a 61 segment analogue bargraph. This meter offers features of MIN/MAX recordings, Data Hold, Frequency measurement with Duty Cycle, Capacitance measurement of up to 4000F and resistance of 60 megaohms.
It has the added function of temperature measurement in either C or F, with a range from -20C up to 760C. An adaptor is supplied which converts the 4mm input to accept K-Type thermocouples.
The MT24 is a compact meter with double moulded rubber housing and meets the International Standard IEC-61010-1 CAT lll 600V. The large LCD display screen has a white backlight for use in arduous areas. This meter is a very economical tester ideally suited for everyday use by electricians, electronic technicians as well as the air conditioning industry.
Features:
- Measures AC and DC Voltage to 1000V
- MIN/MAX Recordings
- Auto Range with Manual Override
- Frequency measurement to 10MHz
- Capacitance to 4000F
- Temperature from -20 to 760 C
- Data Hold
- Duty Cycle
- 6000 Count LCD with bargraph
- Auto Power Off
- Overmould rubber housing
- Integrated Test Lead Holder
- Backlight for dimly lit areas
- Temperature measurement

Specifications

- DC Voltage: 600.0mV to 1000V +/- (1.2% +2)
- AC Voltage: 6.000V to 1000V +/- (1.5% +3)
- DC Current: 6A to 10A +/- (2.5%+5)
- AC Current: 6A to 10A +/- (3.0% +5)
- Resistance: 600.0 ohms 60.00 megaohms +/- (2.0% +2)
- Frequency: 9.999Hz to 10MHz +/- (1.2% +3)
- Capacitance: 40.00nF 4000uF +/- (3.0% +5)
- Temperature: 20 to 760 C +/- ( 3.0%+5)
- Size: 150 x 70 x 48mm
- Weight: 255g
