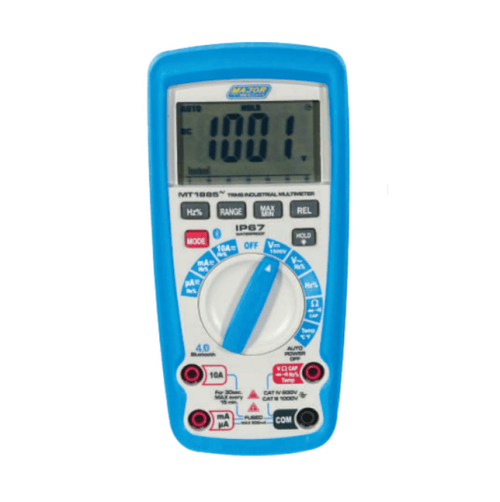

MT1885 Industrial DMM

ORDER ME IN
Product code: MT1885

Backorder Now, once ordered your item will dispatch before the 22nd of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The MT1885 is a CAT IV 600V True RMS multimeter specially designed for the Solar industry.

-Can make measurements of up to 1500V DC and up to 1000V ACV.
-Temperature measurement from -20⁰C to 1000⁰C.
-With IP67 protection and Bluetooth connection.

Read more

$305.00 AUD + GST
 $335.50 AUD Inc. GST
The MT1885 is a CAT IV 600V True RMS multimeter specially designed for the Solar industry due to the measurement of up to 1500V DC. The meter has a large 6000 count backlit LCD with the added advantage of a 61 segment analogue bargraph.
The MT1885 provides NCV function, automatic Non-Contact voltage detection, the LCD backlight will be in red when AC voltage above 110V is sensed. Other measuring ranges include ACV to 1000V, Micro Amps and Amps, Frequency, Resistance, Duty Cycle, capacitance and temperature measurements.
The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organising and sharing recordings. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.
Features:
- 6000 count with 61 Segment Bargraph
- Measures DCV up to 1500V & ACV up to 1000V
- Temperature measurement from -20 to 1000 C
- AC & DC Micro Amps up to 10A
- Capacitance to 100mF
- Frequency to 10MHz
- Duty Cycle
- Relative mode
- Automatic NCV where LCD backlight turns red
- Min, Max and Data Hold
- Auto Power Off
- IP67 Dust and Waterproof

Specifications

- DC Voltage: 600.0mV to 1500V +/- (0.5% +5)
- AC Voltage: 6.000V to 1000V +/- (0.8% +4)
- DC Current: 600.0uA to 10A +/- (1.0% +3)
- AC Current: 600.0uA to 10A +/- (1.5% +2)
- Resistance: 600.0 ohms to 60 megaohms +/- (1.5% +2)
- Frequency: 9.999Hz to 9.999MHz +/- (1.2% +4)
- Capacitance: 99.99nF to 100mF +/- (4.0% +5)
- Temperature: -20 to 1000 C +/- (3.0% +5C)
- Duty Cycle: 0.1% to 99.9% +/- (1.2% +2)
- Size: 187 x 81 x 50mm
- Weight: 342g
