MT1881 INDUSTRIAL DMM

ORDER ME IN
Product code: MT1881

Order Me In, Once ordered this item will likely dispatch before the 03rd of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

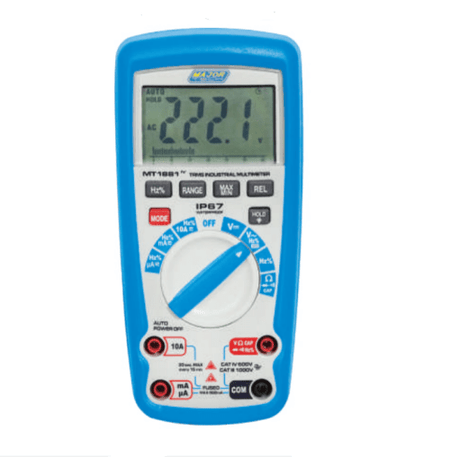

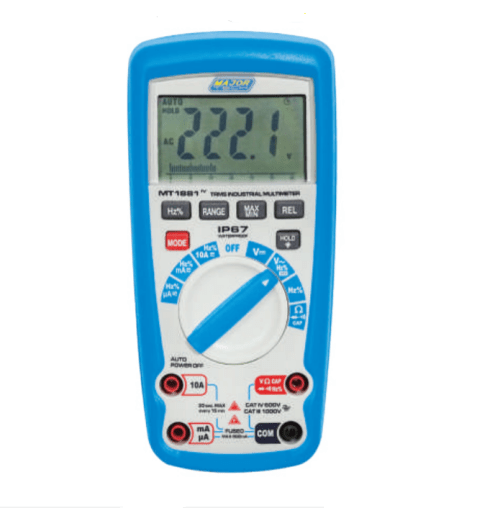

The MT1881 is a True RMS professional multimeter having a large 6000 count backlit LCD with a 61 segment analogue bar graph, especially designed for everyday use by electricians.

-Measures 1000V AC and DC, Resistance, AC/DC Current, Capacitance and Frequency.

-NCV detection above 110V AC.

-With IP67 Dust & waterproof with O-ring sealed casing.

Read more

$232.00 AUD + GST
 $255.20 AUD Inc. GST
The MT1881 is a True RMS professional multimeter having a large 6000 count backlit LCD with a 61 segment analogue bar graph,
especially designed for everyday use by electricians. Capable of measuring 1000V AC and DC, with added measuring ranges of
Resistance, AC/DC Current, Capacitance and Frequency.
The meter has been designed that should a user turn the rotary switch in any direction whilst an input of less than 1000V AC/DC is applied to the meter, the meter will not get damaged. NCV function,
automatic Non-Contact voltage detection, the LCD backlight will glow red when AC voltage above 110V is sensed. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.
Features:
- NCV detection above 110V AC, LCD turns red to indicate presence of voltage
- IP67 Dust & waterproof with O-ring sealed casing
- Auto range with manual override
- Measures frequency range of 10Hz to 10MHz on electronic and electrical circuits
- Measures AC and DC voltage to 1000V
- Capacitance to 4000uF/Relative mode/Data hold
- MIN/MAX recording mode
- 6000 Count LCD display and equipped with a 61 segment analogue bargraph
- Full ranges protection & Auto power off
- Overmould rubber housing & Integrated test lead holder
- Blue backlight for dimly lit areas

Specifications

- DC Voltage: 600.0mV to 1000V +/- (0.5% +5)
- AC Voltage: 6.000V to 1000V +/- (0.8% +4)
- AC Voltage VFD: 50V to 600V +/- (4% + 9)
- DC Current: 600.0uA to 10A +/- (0.1% +3)
- AC Current: 600.0uA to 10A +/- (1.5% +3)
- Resistance: 600.0 ohms to 60.00 megahoms +/- (0.8% +2)
- Frequency: 9.999Hz to 9.999MHz +/- (1% +3)
- Capacitance: 40.00nF to 4000uF +/- (4% +5)
- Size: 187 x 81 x 51mm
- Weight: 342g
