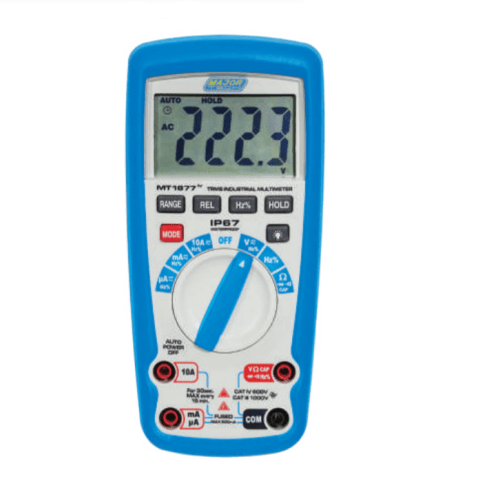

MT1877 Industrial DMM 4000 count True RMS

ORDER ME IN
Product code: MT1877

Order Me In, Once ordered this item will likely dispatch before the 14th of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The MT1877 DMM is a 4000 count True RMS auto ranging multimeter, with manual override.

-Measures frequency on AC voltage and current with the range of 50Hz to 400Hz.

-NCV detection above 110V AC, LCD turns red to indicate presence of voltage.

-Auto Range with Manual Override.

Read more

$185.00 AUD + GST
 $203.50 AUD Inc. GST
The MT1877 DMM is a 4000 count True RMS auto ranging multimeter, with manual override. This meters offers a great feature
of measuring frequency on AC voltage and current with the range of 50Hz to 400Hz. The large LCD display with clear range annunciations and backlight ensure that readings are easy to read under all circumstances.
The large LCD display with clear range annunciations and backlight ensure that readings are easy to read under all circumstances. This meter ensures that if the rotary switch is turned in any direction whilst signals less than 1000V AC/DC are input into the meter, the meter will not be damaged. It is even protected against measuring voltage if the knob is set on the ohms range accidentally.
This meter is perfect for technicians in maintenance, facility maintenance, installation and production equipment maintenance.
Features:
- IP67 Dust & Waterproof with O-Ring sealed casing
- NCV detection above 110V AC, LCD turns red to indicate presence of voltage
- Auto Range with Manual Override
- Measures Frequency range on Electronic and Electrical Circuits
- Capacitance to 100uF
- Measures AC and DC Voltage to 1000V
- Relative Mode
- Data Hold / Duty Cycle
- NCV detection above 110V AC
- 4000 Count LCD
- Full Ranges Protection
- Auto Power Of
- Overmould rubber housing
- Integrated Test Lead Holder
- Blue backlight for dimly lit areas

Specifications

- DC Voltage: 400.0mV to 1000V +/- (0.5% +5)
- AC Voltage: 400.0mV to 1000V +/- (0.8% +8)
- DC Current: 400.0uA to 10A +/- (1.0%+3)
- AC Current: 400.0uA to 10A +/- (1.5% +3)
- Resistance: 400.0 ohms to 40.00 megaohms +/- (0.8% +2)
- Frequency: 9.999Hz to 10.00MHz +/- (1.0% +5)
- Capacitance: 99.99nF to 99.99mF +/- (4.0% +5)
- Size: 187 x 81 x 50mm
- Weight: 375g
