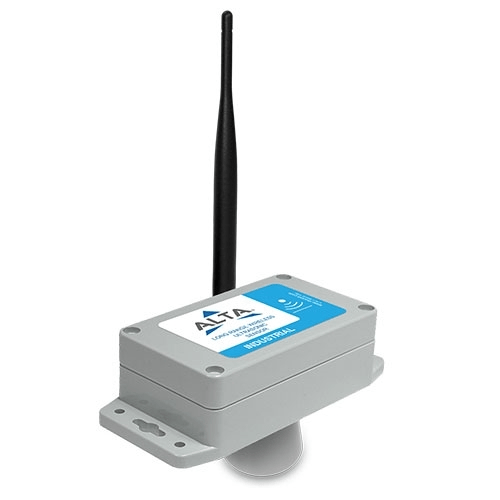

Monnit Wireless Ultrasonic Level Sensors - IC-MNS2-4-IN-US-IN-MPL

DISCONTINUED
Product code: IC-MNS2-4-IN-US-IN-MPL

Unfortunately, the MNS2-4-IN-US-IN-MPL has been discontinued and has been replaced by the MNS2-4-IN-US-IN-L03.

Monnit's ALTA ultrasonic sensors can be used in a variety of applications for measuring distances between the sensor and objects in its path. ALTA ultrasonic sensors are impervious to target surface and color, and feature auto-calibration algorithms which allow them to adapt to variable environmental conditions and compensate for temperature and humidity effects. The ultrasonic sensors can also be calibrated through the iMonnit software for greater accuracy in distance measurements.

Read more

Unfortunately, the MNS2-4-IN-US-IN-MPL has been discontinued and has been replaced by theMNS2-4-IN-US-IN-L03.
Note: Gateway required to operate this sensor

Monnit's ALTA ultrasonic sensors can be used in a variety of applications for measuring distances between the sensor and objects in its path. ALTA ultrasonic sensors are impervious to target surface and color, and feature auto-calibration algorithms which allow them to adapt to variable environmental conditions and compensate for temperature and humidity effects. The ultrasonic sensors can also be calibrated through the iMonnit software for greater accuracy in distance measurements.

Typical applications include; liquid level detection, measurement between sensor and objects, and much more. ALTA commercial ultrasonic sensors are ready-to-use, easy to maintain, and designed to provide you highly reliable and fast measurements for both indoor and outdoor applications.

ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,000+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.

Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors. Monnit's Industrial sensors have a battery life that typically lasts 10+ years.

Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can?t be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.

Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.
The standard version of this sensor is powered by two replaceable 1.5 V AA sized batteries (included with purchase). This sensor is also available with a line power option. The line powered version of this sensor has a barrel power connector allowing it to be powered by a standard 3.0 - 3.8 V power supply (Included with Line Power option upgrade). The line powered version also uses two standard 1.5 V AA batteries as backup for uninterrupted operation in the event of line power outage.

Specifications


- Minimum Distance: 20 cm
- Maximum Distance: 750 cm
- Accuracy: +/- 1% Full Scale
- Supply Voltage: 2.0 - 3.8 VDC
- Battery Type: Replaceable 3.6V, 1800mAH (single AA sized)
- Battery Life: Up to 10 Year Battery Life
- Max Operating Temperature: -40 to 85 C (-40 to 185 F)
- Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure
- UL Rating: UL Listed to UL508-4x specifications (File E194432)
- Dimension: 3.7 in x 2.32 in x 1.38 in
