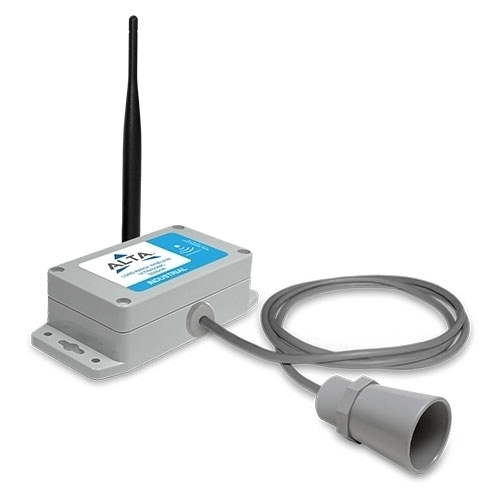

Monnit Industrial Ultrasonic Wireless Sensor - IC-MNS2-4-IN-US-IN-L03
Monnit Industrial Ultrasonic Wireless Sensor - IC-MNS2-4-IN-US-IN-L03
ORDER ME IN
Backorder Now, once ordered your item will dispatch before the 07th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
Monnit’s Industrial Ultrasonic Sensors can be used in various applications to measure distances between the sensor and objects in its path. It can measure levels or detects movements and can be used vehicle/object detection, capturing liquid levels, and tracking inventory.
- Wireless range of up to 1,200 feet through walls.
- Enclosed in a protective housing making it safe for outdoor applications.
- Will send an alarm via text, email, or call.
Regular price
$1,853.00 AUD
+ GST
$2,038.30 AUD Inc. GST
$2,038.30 AUD Inc. GST
Note: Gateway required to operate this sensor
Packaged in a weatherproof housing, Monnits Industrial Ranging Sensor measures levels or detects objects. Indoor and outdoor applications include vehicle/object detection, capturing liquid levels, and tracking inventory. If a monitored variable varies from a users preset limits, the sensor issues an alert via text, email, or call.
Monnits Ultrasonic Sensors can be used in various applications to measure distances between the sensor and objects in its path. These ultrasonic sensors are impervious to target surface and colour and feature autocalibration algorithms which allow them to adapt to variable environmental conditions and compensate for temperature and humidity effects.
Advanced PosiTector meters have Bluetooth, WiFi, and advanced measuring modes (Normal, Statistics and Limited Average Count) depending on the needs of the user.
As a battery-powered sensor, Monnits device installs quickly because theres no wiring to an additional power source. This modularity is ideal for silos, tanks, loading docks, and other difficult-to-network applications. The Ultrasonic Sensor sends out a high-frequency sound pulse and then times how long it takes for the echo of the sound to reflect back. The sensor has two openings on its front. One opening transmits ultrasonic waves (like a tiny speaker), the other receives them (like a tiny microphone). The ultrasonic sensor uses the speed of sound and time difference between sending and receiving the sound pulse to determine the distance to an object. It will take readings at set intervals and report the data back to the iMonnit software portal, where the information is processed to display distance and alert users if a defined condition is met. All sensor data is then stored for historical analysis.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
MNS2-4-IN-US-IN-L03 Features
- Impressive wireless range of up to 1,200 feet through walls
- Frequency-hopping spread spectrum (FHSS)
- Improved interference immunity
- Improved power management for longer battery life
- Encrypt-RF Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Stores 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through the power cycle
- Over-the-air updates
- Free iMonnit basic online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email
Specifications
Supply voltage
|
2.0-3.8 VDC (3.0-3.8 VDC using power supply)
|
Current consumption
|
0.2 uA (sleep mode), 0.7 uA (RTC sleep), 570 A (MCU idle), 2.5 mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA (radio TX
|
mode)
|
0
|
Operating temperature range (board circuitry and battery)
|
-40 to +85 C (-40 to +185 F)
|
Max temperature range
|
-40 to +85 C (-40 to +185 F)
|
Capacity
|
1500 mAh
|
Sensor resolution
|
1 cm
|
Minimum measurement distance
|
20 cm
|
Maximum measurement distance
|
750 cm
|
Sensor accuracy
|
+/- 1% full scale
|
Integrated memory
|
Up to 3200 sensor messages
|
Wireless range
|
more than 1,200 ft non-line-of-sight
|
Security
|
Encrypt-RF (256-bit key exchange and AES-128 CTR)
|
Weight
|
4.7 ounces
|
Enclosure rating
|
NEMA 1, 2, 4, 4x, 12 and 13 rated, sealed and weather proof
|
UL rating
|
UL Listed to UL508-4x specifications (File E194432)
|
