Home > Monnit ALTA Wireless AA Pressure Sensors (50 PSIG/ 345 kPa/3.45 Bar) - IC-MNS2-4-W2-PS-050
Monnit

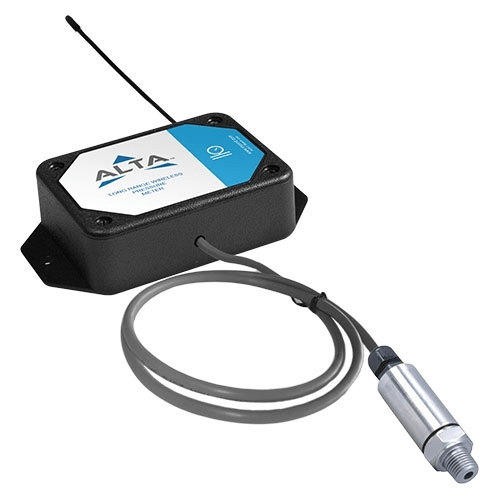

Monnit ALTA Wireless AA Pressure Sensors (50 PSIG/ 345 kPa/3.45 Bar) - IC-MNS2-4-W2-PS-050

ORDER ME IN
Product code: IC-MNS2-4-W2-PS-050

Backorder Now, once ordered your item will dispatch before the 27th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

ALTA wireless pressure meters measure pressure and transmit the pressure measurement to iMonnit. By connecting the Monnit wireless pressure meter to a pressurized gas, liquid or vapor supply line, it can measure the pressure within the line and send data to the iMonnit Online Sensor Monitoring and Notification System.

Read more

$1,149.00 AUD + GST
 $1,263.90 AUD Inc. GST
Note: Gateway required to operate this sensor

ALTA wireless pressure meters measure pressure and transmit the pressure measurement to iMonnit. By connecting the Monnit wireless pressure meter to a pressurized gas, liquid or vapor supply line, it can measure the pressure within the line and send data to the iMonnit Online Sensor Monitoring and Notification System. The data is stored in the online system and can be reviewed and exported as a data sheet or graph. User customization allows you to set notifications and alerts from the system so you can know immediately if pressure is above or below an optimal range.

ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,200+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.

Superior power management provides ALTA sensors with almost twice the battery life of Monnit?s standard wireless sensors. Monnit's AA sensors have a battery life that typically lasts 10+ years.

Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can?t be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.

Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.

Features:

- Works with Gas, Liquid or Vapor.
- No External Power Required.
- Measures pressure from 0-50 PSIG or 0-300 PSIG

Suggested Applications:

- Compressed air supply lines
- Water supply lines
- Gas supply lines
- Pumping systems
- Irrigation system pressure
- Industrial process monitoring
- Trash compaction equipment

Specifications


- Accuracy: 0.25% FS; 0.20% RSS; Absolute Ranges: 0.5% FS; 0.35% RSS (Includes linearity, hysteresis, and repeatability)
- Temperature Operating Range: -18 to 79 C (0 to 175 F).
- Thermal Effect on Reading: +/- 0.02% FS/F (includes zero and span)
- Media: Gas, Liquid or Vapor
- Response Time: 50 msec
- Process Connection: 0.25" NPT Male Standard
- Input Voltage: 5.5 V (max)
- Stability: 1.0% FS/year (Typ.)
- Voltage Measurement Range: 0 - 5.2 V
- Voltage Measurement Resolution: around 3 mV
- Voltage Measurement Accuracy: +/- 3% FS
- Pressure Measurement Accuracy: +/- 3% FS
- User Calibrated Accuracy: +/- 1% FS
- Pressure Transducer(s): 50 PSIG
- Battery Type: 2 Replaceable AA 1.5 V Batteries
- Dimension: 4.375 in x 2.470 in x 1.12 in
- Supply Voltage: 2.0 - 3.8 V (2 x AA 1.5V Batteries or Optional Power Supply)
- Battery Life: At 1 hour heartbeat setting, included AA batteries will typically last 6-8 Years
- Max Operating Temperature Using AA Alkaline: -18 C to 55 C (0 F to 130 F)
- Max Operating Temperature Using AA Lithium: -40 C to 60 C (-40 F to 140 F)
- Optimal Battery Operating Temperature: +10 C to +50 C (+50 F to +122 F)
- Enclosure Material: ABS
