Monnit ALTA Industrial Wireless Air Velocity /Speed Sensor - IC-MNS2-4-IN-PS-AV

ORDER ME IN
Product code: IC-MNS2-4-IN-PS-AV

Order Me In, Once ordered this item will likely dispatch before the 05th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

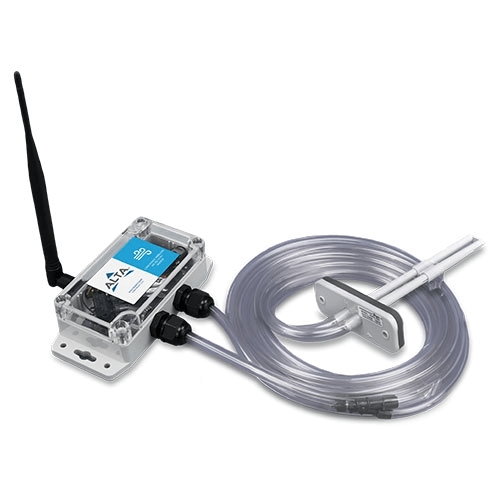

The ALTA wireless air speed sensor measures the pressure difference between two input ports, the temperature, and altitude determines the speed at which the air is moving in a system and transmits the measurement to iMonnit.

Read more

$1,360.00 AUD + GST
 $1,496.00 AUD Inc. GST
Note: Gateway required to operate this sensor

The ALTA wireless air speed sensor measures the pressure difference between two input ports, the temperature, and altitude determines the speed at which the air is moving in a system and transmits the measurement to iMonnit. The sensor measures the pressure difference between two ports. When viewing the sensor from the top, the right inlet port is the negative or low side pressure input. When the pressure on this port is greater than the left port the sensor produces a negative pressure reading. When the pressure is greater on the left port the sensor produces a positive pressure reading. Combined with the temperature and the altitude, the sensor determines at what rate the air is flowing in a system.

ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,200+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.


Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors. Monnit's Industrial sensors have a battery life that typically lasts 10+ years.


Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.


Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available. Monnit ALTA Industrial Sensors come in an IP65, NEMA 4X, CE rated, sealed, and weatherproof enclosure. They are powered by a single, replaceable, Industrial grade 3.6 V battery (included).


An optional solar powered version is also available. The solar powered version includes a Lithium Iron Phosphate rechargeable battery in conjunction with a solar power cell to keep the battery charged and at optimal capacity. If there is no light present at the solar cell, the battery alone could continue to power the sensor for up to 8-10 years.


Suggested applications:


- Building/Room Pressure
- Air Flow
- Variable Air Volume Filter Status
- Duct Pressure
- Clean Rooms
- Hospitals
- Fume Hoods
- Computer Rooms


Specifications

:


- Pressure Range: -500 Pa to 500 Pa
- Allowable Overpressure: 100 kPa
- Rated Burst Pressure: 500 kPa
- Max Humidity for Long-Term Exposure: 40 C dew point
- Sensing Range (Range at 0 m Altitude): 0-30m/s
- Sensing Range (Range at 5000 m Altitude): 0-40m/s
- Sensing Range (Range at 8000 m Altitude): 0-50m/s
- Span Repeatability: 0.5% of reading
- Span Shift Due to Temperature Variation: < 0.5% of reading per 10 C
- Offset Stability: < 0.05 Pa/year
- Calibrated For: Air, N2
- Media Compatibility: Air, N2, O2, non-condensing
- Supply Voltage: 2.0 - 3.8 VDC
- Battery Type: Replaceable 3.6V, 1800mAH (single AA sized)
- Battery Life: Up to 10 Year Battery Life
- Max Operating Temperature: -40 to 85 C (-40 to 185 F)
- Optimal Battery Operating Temperature: +10 C to +50 C (+50 F to +122 F)
- Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure
- UL Rating: UL Listed to UL508-4x specifications (File E194432)
- Dimension: 3.7 in x 2.32 in x 1.38 in


Solar power specifications:


- 3.0 VDC Solar Panel
- 600 mAH Rechargeable Battery (>2000 Charge Cycles - 80% of Initial Capacity)
- Charging Temperature Range: 0 to 45 C (32 to 113 F)
- Max Temperature Range: -20 to 60 C (-4 to 140 F)
