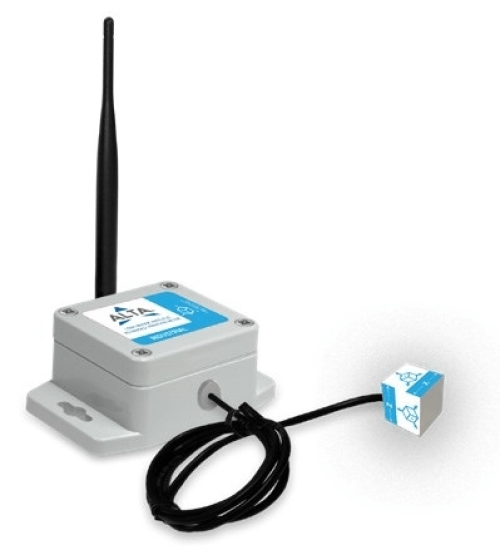

Monnit ALTA Industrial Wireless Accelerometer - Advanced Vibration Meters
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 14th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
Note: Gateway required to operate this sensor Predict the maintenance of machinery and structures to improve performance by continuously measuring fluctuating vibration. The award-winning Industrial Advanced Vibration Meter uses an...
Regular price
$1,013.00 AUD
+ GST
$1,114.30 AUD Inc. GST
$1,114.30 AUD Inc. GST
Note: Gateway required to operate this sensor
Predict the maintenance of machinery and structures to improve performance by continuously measuring fluctuating vibration. The award-winning Industrial Advanced Vibration Meter uses an accelerometer to wirelessly monitor oscillation on three axes to capture vibration frequency, crest factor, velocity, displacement, or acceleration. The meter also reports duty cycle and temperature, helping protect vital assets and perform end-of-life analysis.
The Industrial Wireless Advanced Vibration Meter reports this data on a user-configurable time interval or Heartbeat. In addition, the sensor can report the current, max, or average data. These measurements are sent to the gateway, making the data available in iMonnit or another approved data service.
The industrial model only comes in the leaded option and includes 3.6V Lithium batteries. This sensor has an expected battery life of up to 7 years.
All industrial sensors are enclosed in a reliable, weatherproof NEMA-rated enclosure that are constructed for both indoor and outdoor use. These rugged enclosures protect the sensor circuitry against:
- Falling dirt
- Wind-blown dust
- Rain, sleet, snow, splashing water, and hose-directed water
- Ice formation on the enclosure
- Increased resistance to corrosion
Features:
- Three-axis measurement
- Configurable Vibration Measurement modes to report Peak Acceleration, RMS acceleration, RMS Velocity, or Peak-to-Peak Displacement
- Configurable Frequency Range
- Configurable Hanning filter
- Measure vibration frequencies up to 4200 Hz / 252,000 RPM
- Configurable Measurement Interval as low as one second
- Configurable critical Vibration Aware Threshold
- Runtime indication via Duty Cycle
- Three configurable Data Report modes (Most Recent, Average, Max)
General features of ALTA Industrial Sensors:
- Impressive wireless range of up to 1,200 feet through walls
- Frequency-hopping spread spectrum (FHSS)
- Improved interference immunity
- Improved power management for longer battery life
- Encrypt-RF Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Stores 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through the power cycle (10-minute heartbeats = around 22 days / 2-hour heartbeats = around 266 days)
- Over-the-air updates
- Free iMonnit basic online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email
Specifications
Accelerometer:
Vibration Variation over Temperature: 0.01 %/C (0.018%/F)(xy), 0.03 %/C (0.054%/F)(z)
Cross Axis Sensitivity: 2%
General Noise (RMS): 0.7 mg
General Noise (Density): 130 ug/(SampleRate)
Temperature:
- Transducer Type: 10 KOhm NTC Thermistor ( = 3455 K)
- Calibrated Accuracy: +/- 1 C (+/- 1.8 F)
- Resolution: 0.1 C (0.18 F)
- Response Time: 50 seconds (10 second time constant)
Cube:
- Dimensions: 0.75'' x 0.75'' x 0.75''
- Weight: 17g (cube with electronics and epoxy)
- Mounting Hole: M4 x 0.7 Tapped Threads, 7mm hole depth
- Composition: Aluminum and accelerometer potted with black epoxy
- Operating Temperature: -40 to 105 C (-40 to 221 F) (Electronics only)
- Operating Humidity: 0 to 100% (Electronics sealed inside)
Lead:
- Wire Details: 6-conductor, 28 AWG, stranded copper
- Operating Temperature: -25 to 85 C (-13 to 185 F)
- Length: 3 m
- Insulation / Jacket: PVC (black), 0.010"
- Shield: Yes
- Overall Diameter: 4.5 mm
- Ratings / Approvals: UL AWM STYLE 2464, cUL AWM I/IEC RoHS/Reach Compliant
- Temperature Rating: -20 to 85 C (-4 to 185 F)
- Voltage Rating: 300 V Max
- Dielectric Stength: 1500 V RMS
