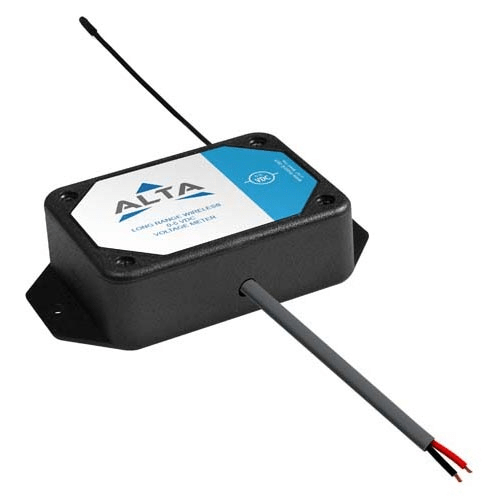

Monnit ALTA AA Wireless Voltage Detection (DC Model) - IC-MNS2-4-W2-VD-DC
Monnit ALTA AA Wireless Voltage Detection (DC Model) - IC-MNS2-4-W2-VD-DC
ORDER ME IN
Backorder Now, once ordered your item will dispatch before the 31st of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The Monnit Voltage Detector (0- 50 VDC) detects the presence or absence of electricity.
Regular price
$458.00 AUD
+ GST
$503.80 AUD Inc. GST
$503.80 AUD Inc. GST
Note: Gateway required to operate this sensor
The Monnit Voltage Detector - 50 VDC detects the presence or absence of electricity. It is intended for use on battery or other DC sources, up to 50 Volts. Not intended for use with AC Voltages. It is perfect for batteries, adapters, solar equipment, vehicles or machinery, and any other electrical appliance monitoring. The sensor triggers on voltage presence to voltage Absence and vice versa. The data is displayed as "Voltage Detected" or "No Voltage".
ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,000+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.
Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors. The AA sensors have a battery life that typically lasts 10+ years.
Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.
Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.
Features:
- Interfaces with electrical devices or power lines from 24 - 500 VAC.
- Includes Wireless sensor, Battery, and mounting hardware
Specifications
- Maximum Rated Input Voltage: Up to 50 Volts DC
- Minimum Rated Input Voltage: -50.0 Volts
- Voltage Detection Threshold: Present above 0.47 Volt, Absent below 0.47 Volt
- Trigger: Transmits Data on State Change
- Open Circuit Reading: Voltage Absent
- Battery Type: 2 Replaceable AA 1.5 V Batteries
- Dimension: 4.375 in x 2.470 in x 1.12 in
- Supply Voltage: 2.0 - 3.8 V (2 x AA 1.5V Batteries or Optional Power Supply)
- Battery Life: At 1 hour heartbeat setting, included AA batteries will typically last 6-8 Years
- Max Operating Temperature Using AA Alkaline: -18 C to 55 C (0 F to 130 F)
- Max Operating Temperature Using AA Lithium: -40 C to 60 C (-40 F to 140 F)
- Optimal Battery Operating Temperature: +10 C to +50 C (+50 F to +122 F)
- Enclosure Material: ABS
