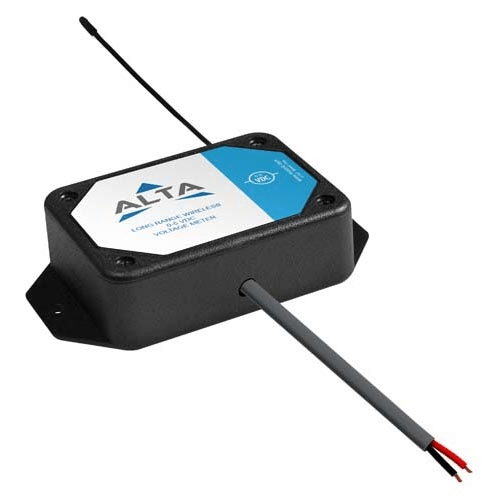

Monnit ALTA AA Wireless Voltage Detection (AC Model) - IC-MNS2-4-W2-VD-AC
Monnit ALTA AA Wireless Voltage Detection (AC Model) - IC-MNS2-4-W2-VD-AC
ORDER ME IN
Backorder Now, once ordered your item will dispatch before the 31st of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The Monnit Voltage Detector (0- 50 VAC) detects the presence or absence of electricity.
Regular price
$467.00 AUD
+ GST
$513.70 AUD Inc. GST
$513.70 AUD Inc. GST
Note: Gateway required to operate this sensor.
The AC Voltage Detection Sensor notifies of the presence or absence of electricity. It is intended for use on devices using supply power from 24 - 500 VAC. Not intended for voltages higher than 500 VAC and also not intended for use with DC sources. Perfect for HVAC systems, sprinkler systems, sump pumps and any other type of electrical appliance monitoring. This sensor triggers on the state change from presence to absence of voltage and vice versa. The data is displayed as either "No Voltage" or "Voltage Detected".
ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,000+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.
Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors. The AA sensors have a battery life that typically lasts 10+ years.
Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.
Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.
Features:
- Interfaces with electrical devices or power lines from 24 - 500 VAC.
- Includes Wireless sensor, Battery, and mounting hardware
Specifications
- Trigger: Transmits Data on State Change
- Open Circuit Reading: Voltage Absent
- Full Scale Voltage: 24 - 500 VAC
- Maximum Rated Input Voltage: 600 VAC
- Battery Type: 2 Replaceable AA 1.5 V Batteries
- Dimension: 4.375 in x 2.470 in x 1.12 in
- Supply Voltage: 2.0 - 3.8 V (2 x AA 1.5V Batteries or Optional Power Supply)
- Battery Life: At 1 hour heartbeat setting, included AA batteries will typically last 6-8 Years
- Max Operating Temperature Using AA Alkaline: -18 C to 55 C (0 F to 130 F)
- Max Operating Temperature Using AA Lithium: -40 C to 60 C (-40 F to 140 F)
- Optimal Battery Operating Temperature: +10 C to +50 C (+50 F to +122 F)
- Enclosure Material: ABS
