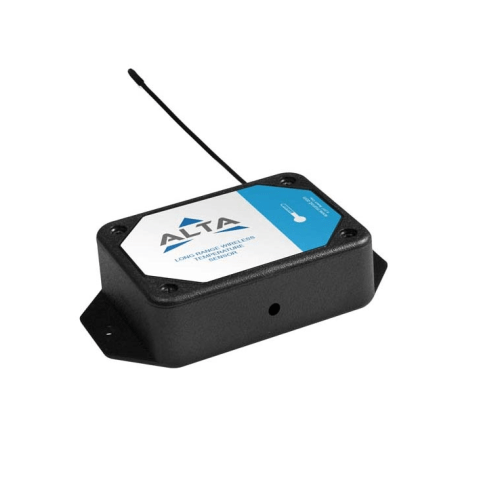

Monnit - ALTA - AA - Wireless Temperature Sensor

ORDER ME IN
Product code: MNS2-4-W2-TS-ST

Order Me In, Once ordered this item will likely dispatch before the 05th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The MNS2-4-W2-TS-ST is wireless temperature sensor that uses NTC thermistor for measuring ambient temperature.

-Measurement range of -40 to +125 C with an accuracy of +/- 1%.

-Wireless transmission rate of 1,200+ feet through walls (12-14 walls typical).

-Automated data logging when connected to the Monnit gateway (required, sold separately); can record 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through the power cycle).

Read more

$285.00 AUD + GST
 $313.50 AUD Inc. GST
Note: Gateway required to operate this sensor
Use Monnits ALTA temperature monitoring solutions anywhere changes will degrade performance, assets, or safety. If temps rise or fall, get an alert via email, text, or call to step in and protect business.
ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,200+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices. Superior power management provides ALTA sensors with almost twice the battery life of Monnits standard wireless sensors.
ALTA products employ Monnit's new Encrypt-RF Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages), so security is maintained at all communication points from sensor to gateway, gateway to software, then back again.
Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that cant be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted
Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available. The standard version of this sensor is powered by two replaceable 1.5 V AA sized batteries.
Features:
- Automated data logging: ideal in pharma, food service & production.
- 25-month NIST Certification: this option helps ensure regulatory compliance.
- Plug-&-play simplicity: install within 15 minutes.
- Wireless range of 1,200+ feet through 12+ walls (Actual range may vary)
- Frequency-Hopping Spread Spectrum (FHSS)
- Improved interference immunity
- Improved power management for longer battery life (12+ years on AA batteries, maybe shorter depending on data logging configurations used)
- Encrypt-RF Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Datalogs 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through the power cycle): 10-minute heartbeats = around 22 days. 2-hour heartbeats = around 266 days
- Over-the-air updates (future proof)
- Free iMonnit basic online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email

Specifications

- Supply voltage: 2.0 to 3.8 VDC (3.0 to 3.8 VDC using power supply)
- Current consumption: 0.2 uA (sleep mode), 0.7 uA (RTC sleep), 570 uA (MCU idle), 2.5 mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA (radio TX mode)
- Operating temperature range (board circuitry and batteries): -18 to 55 C using alkaline; -40 to 85 C using lithium
- Optimal battery temperature range (AA): 10 to 50 C
- External Probe and Lead Operating Range: -40 to +125 C
- Accuracy at 25 C: +/- 1% (1 C)
- User-calibrated accuracy: +/- 0.25 C
- Time constant at 25 C: 15 sec max
- Datalogging Datalogs 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through the power cycle): 10-minute heartbeats = ~ 22 days; 2-hour heartbeats = ~ 266 days
- Wireless range: 1,200+ ft non-line-of-sight
- Security: Encrypt-RF (256-bit key exchange and AES-128 CTR)
Includes:
- Wireless Sensor
- Mounting Hardware
- Wireless Sensor
- Mounting Hardware
- 2x AA Batteries
