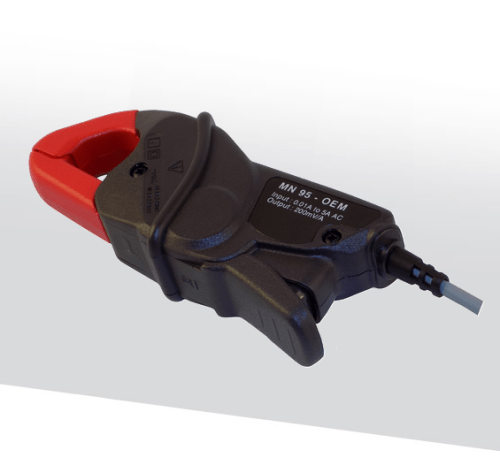

MN95 AMMETER CLAMP - IC-4 AAYVRP

4 AVAILABLE
Availability Info (?)

Order now and the extra items will likely dispatch before the 20th Oct 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.

Product code: 4AAYVRP
Current clamp for currents up to 5A

Read more

$975.00 AUD + GST
 $1,072.50 AUD Inc. GST

The MN95 ammeter clamp can be used on all analyzers of the NanoVIP? family for the measurement of alternating currents up to 5 A; it is equipped with an automatic recognition system by the analyzer which makes its setting very simple.

The particularly compact dimensions make it a highly ergonomic instrument, easy to place and with a minimum occupation of space.

Specifications

- Measured range: 0.01 A up to 6A
- Operating voltage: 600V rms
- Output signal: 200 mV AC / A AC (1.2 V for 6A)
- Bandwidth: 40 Hz… 10 kHz
- Crest factor: 3 for a current of 6A rms
- Maximum currents: 6 A continuous for a frequency ? 10 kHz (derating proportional to the inverse of frequency beyond)
- Common mode voltage: 600 V category III and pollution degree 2
- Influence of adjacent conductor: less than or equal to 15mA / A at 50 Hz
- Influence of conductor position in jaws: less than or equal to 0.5% of output signal at 50/60 Hz
- Influence of DC current> 20A overlying on the nominal current: less than or equal to 3%
- Influence of frequency (2): less than 5% from 20 to 1kHz; less than 10% from 1kHz to 10 kHz
- Influence of crest factor: less than 3% of output signal for a crest factor of 3 and current of 200A rms
