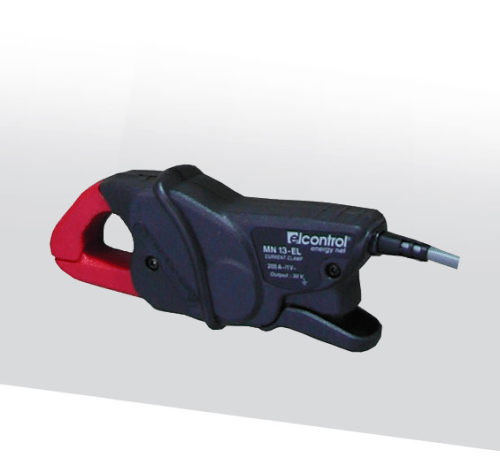

The MN13 ammeter clamp can be used on all analyzers of the NanoVIP family for the measurement of alternating currents up to 200 A; it is equipped with an automatic recognition system by the analyzer which makes its setting very simple.
The particularly compact dimensions make it a highly ergonomic instrument, easy to place and with a minimum occupation of space.
For older models of NanoVIP (without automatic recognition), adapters are available which allow their use.
Features:
- Can be used on NanoVIP family analyzers without the need for external power supply or amplification.
- Equipped with an automatic recognition system when used on the latest NanoVIP series analyzers: TWO TM , CUBE TM and QUADRA
- Designed for the measurement of alternating currents in a wide range of values: from 0.5A to 200A
- Compact and light
- The shape of the pliers makes it easy to attach to cables, even in the smallest areas.
- The precision it offers throughout the measurement range allows it to be used very widely (from civil to industrial)
- The conformation allows a safe use even when wearing safety gloves
- It optionally has adapters for use with older generation Elcontrol analyzers, that is without automatic gripper recognition
- The pliers can grip conductors up to 20 mm in diameter.
Specifications
- Measured range: 0.5 A up to 240A
- Operating voltage: 600V rms
- Output signal: 5 mV AC / A AC (1.2 V for 240A)
- Bandwidth: 40 Hz… 10 kHz
- Crest factor: 3 for a current of 200A rms
- Maximum currents: 200 A continuous for a frequency ? 1 kHz (derating proportional to the inverse of frequency beyond)
- Common mode voltage: 600 V category III and pollution degree 2
- Influence of adjacent conductor: less than or equal to 15mA / A at 50 Hz
- Influence of conductor position in jaws: less than or equal to 0.5% of output signal at 50/60 Hz
- Influence of DC current greater than 20A overlying on the nominal current: less than or equal to 5%
- Influence of frequency (2): less than 3% of output signal from 40Hz to 1kHz; less than 12% of output signal from 1kHz… 10kHz
- Influence of crest factor: less than 3% of output signal for a crest factor of 3 and current of 200A rms
