MISCO VETMED-01 Veterinary Refractometer for Cats and Dogs

1 AVAILABLE
Availability Info (?)

Order now and the extra items will likely dispatch before the 19th Oct 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.

Product code: VETMED-01
The Palm Abbe VETMED-01 Clinical Veterinary digital refractometer has separate species-specific scales for feline urine specific gravity, canine and large animal urine specific gravity, Total Protein by Refractometer (TPr), and refractive index.

  • Requires only a few drops of urine to get instantaneous results for urine specific gravity or blood plasma protein concentration.
  • Uses a 6.54% protein-to-nitrogen ratio with a separate urine specific gravity scales for feline, canine and large animals.
  • Easy-to-use interface with a clear LCD, even in dim light.

Read more

$949.00 AUD + GST
 $1,043.90 AUD Inc. GST

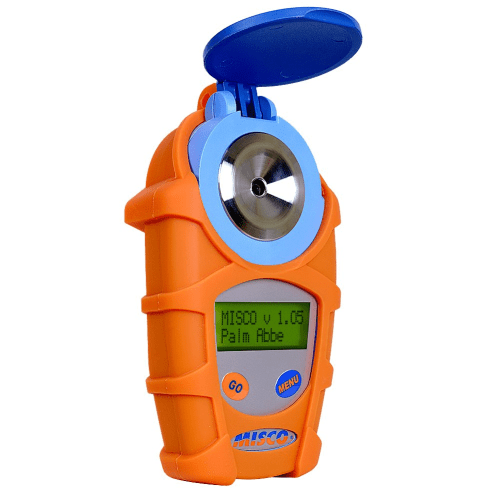

Note: The image shown shows an optional meter jacket that comes in either orange or black, each sold separately.
The new MISCO Palm Abbe is a fourth-generation digital handheld refractometer designed specifically for the veterinary clinical practice. It is fast, convenient, and easy to use. Simply place a few drops of specimen in the stainless-steel well and press a button. The custom-designed microprocessor delivers a nearly instantaneous readout of urine specific gravity or blood plasma protein concentration.
The protein scale on the Palm Abbe is based on accepted veterinary data and uses a 6.54% protein-to-nitrogen ratio. There are separate urine specific gravity scales for feline and for canine and large animals. Dozens of other scales are available and can be mixed and matched for a custom instrument.
The large dual-line LCD display is easily read, even in dim light, and removes the subjectivity associated with interpreting where a boundary line crosses tiny scale divisions. The user interface consists of two buttons, one to take readings and the other to step through various scales or menu options.
The Palm Abbe refractometer automatically calibrates itself to water and is ready to use in seconds. No more screws to turn and nothing to adjust. A NIST traceable calibration standard, available from MISCO, can be used to adjust the high end of the scale.
Nonlinear temperature compensation is automatic and insures that fluids read between 0 and 50 C (+32 to 122 F) are measured accurately. A multilingual display allows the Palm Abbe user to elect to display prompts and measurements in English, Spanish, French, German, or Russian.

Specifications

- Optic Material: Sapphire
- Detector Elements: 1,024
- Well/Sample Area Material: Stainless Steel
- Evaporation Cover: YES
- Light Source: Precision LED at 589 nm
- Display Type: LCD
- Display Characters: 24 Characters - 2 Lines
- Display Backlight: YES
- Display Language: English, German, Spanish, French, Italian, Russian
- Temperature Range: Scale Dependent 0 to 50 C (32 to 122 F) Typical
- Temp. Control Method: Auto Temp. Correction
- Temp. Control Basis: Scale Dependent
- Power Source: 2 AAA Batteries
- Battery Life: Approx. 5,000 Readings
- Body Color: BLUE (2-Tone)
- Body Material: Polymer
- Water Resistance: IP65 - Low Pressure Water
- Dimensions: 5.7 x 2.95 x 1.46 in. (145 x 75 x 37 mm)
- Weight: 8.8 Oz. (250 grams)
- User Programmable: Options/Settings, Select Scale
- User Calibration Points: Two
- Error Codes: Text Based
- Approvals/Certifications: CE
- Country of Origin: USA
