Mirrin Data Logger
Backorder Now, once ordered your item will dispatch before the 20th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The Mirrin Multi Channel Load Logger (MLL) measures AC RMS current (load) up to four channels and is ideal for monitoring loads on circuits and switchboards to record load profiles that can be used to identify slow changing events such as long duration interruptions, outages and derive estimates of usage pattern
The Mirrin Multi Channel Load Logger (MLL) measures AC RMS current (load) up to four channels and is ideal for monitoring loads on circuits and switchboards to record load profiles that can be used to identify slow changing events such as long duration interruptions, outages and derive estimates of usage patterns. The MLL is also useful as a diagnostic tool to assess load sharing on single phase circuits and load balancing on three phase systems.
Features:
- Log channels: Four current (standard) and two temperatures (optional).
- Logged data: RMS current for phases A, B, C and Neutral; current THD for phases A, B, C and Neutral; and two temperature channels.
- Current sensors comply with CAT IV 600V.
- Programmable logging interval, from one second.
- Programmable alarms: current and temperature channels. Alarm events listed in a table.
- Over ten years memory at ten-minute logging interval (SD card included).

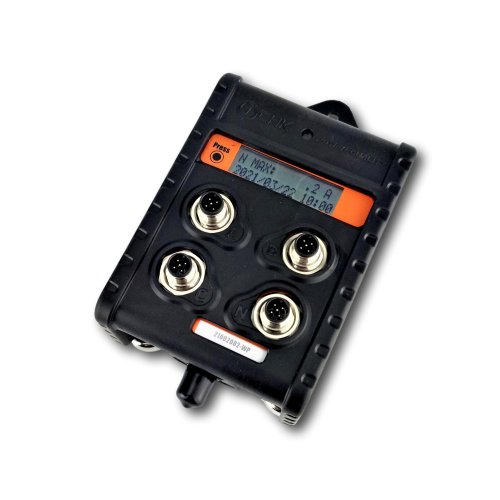

- Displays load current, maximum demand, temperature and maximum temperature with a date-time stamp for each channel.
- Battery (rechargeable) operated with power saving mode to extend battery life.
- External DC e.g. (a) battery, (b) dc power adaptor, (c) solar panel, and (d) USB port.
