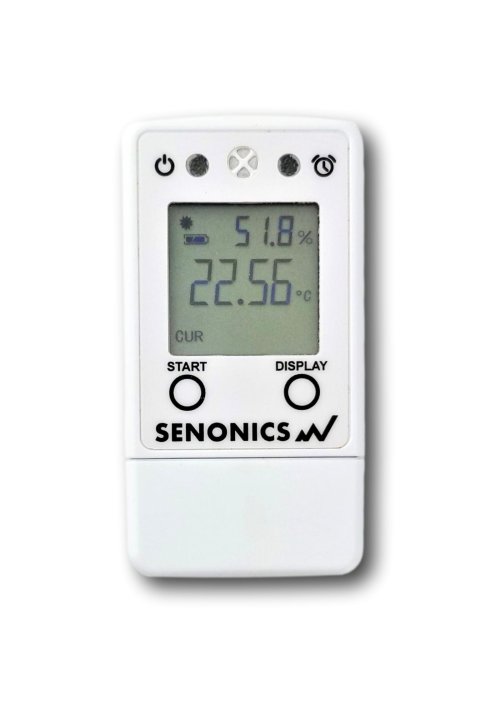

Minnow 2.0 Temperature and Humidity Data Logger with LCD Display
Minnow 2.0 Temperature and Humidity Data Logger with LCD Display
1 In Stock
The Minnow 2.0TH is a precision temperature and humidity data logger with the highest temperature accuracy of any competing logger. With a standard accuracy of +/- 0.17C, the Minnow 2.0 is unmatched in accuracy and resolution for its price range.
Regular price
$239.70 AUD
+ GST
$263.67 AUD Inc. GST
$263.67 AUD Inc. GST
The Minnow 2.0TH is a precision temperature and humidity data logger with the highest temperature accuracy of any competing logger. With a standard accuracy of +/- 0.17C, the Minnow 2.0 is unmatched in accuracy and resolution for its price range.
A free Win / Mac PC application is provided with the Minnow logger and communications are made via a USB-A connector located under the protective cap.
Features:
- High accuracy & high resolution (displays 0.01C changes in temperature)
- USB-A (under cap) for direct connection to Mac or PC, no cable required
- External sensor cable (coming soon)
Specifications
Temperature sensor:
- Range: -25 C to 80 C
- Resolution: 0.01 C
- Accuracy: +0.17 C (from +5 C to 60 C )
Humidity Sensor:
- Range: 0 to 100% RH
- Resolution: 0.16% RH
- Accuracy: +/- 3% (20% to 80%), +/- 5% else
LCD Display:
- Temperature resolution of 0.01C
- Humidity resolution of 0.1 %
- min, max, average for all channels accessed by dedicated display button
LEDs:
- Two dedicated LED indicators
- Two color for operation
- Single color for alarms
Alarms:
- High and Low alarms for all channels
- Ability to enable or disable any alarm
- Dedicated Alarm LED and LCD indicator
Data Storage:
- 65,000 samples of two channels (65K Temp + 65K Humidity)
Start Modes:
- Push button start
- Scheduled start
- Start on disconnect from PC
- Real time logging (stream to PC)
Connections:
- USB-A male located under protective cap
- 3.5mm for external sensors
- Gasket sealed end cap covers both
IP: Ingress Protection:
- IP65 in both the T and TH models
Power:
- User replaceable 2 x CR2032 batteries
- 2 years battery life while logging battery life while logging (display in time-out mode)
- 6 month battery life (display always on)
Real Time Clock:
- Time automatically synced to PC
- Battery backup. Continues to keep time when off
- High accuracy: 0.50 sec/day (~3 min/year)
Holder:
- Optional wall bracket for logger
- Spaces logger off wall for accurate measurements
Dimensions:
- 79 mm x 43 mm x 12 mm
Software:
The Minnow 2.0 logger comes with a very easy to use PC application. The application is used for configuration of the logger, extraction of logger data, graphically viewing of logging data, spread sheet analysis of logging data and saving of logging data to file (typically in comma separated value CSV file format) for third party applications such as Microsoft Excel. The graphical user interface is completely intuitive in terms of configuring new devices and extracting logging data from a field device.
When the user has multiple devices requiring the same setup then one can preload the application with a logger setup from a saved configuration file to help expedite the process and ensure all loggers get setup identically. The application does not require any driver installations to connect to your logging device. Just download the program from our home page, run it and then plug in you device. As simple as that! Currently the PC application is available for Windows XP, Vista, Windows 7, Windows 8 and Windows 10. It is also supported on Mac.
