TPS | See more Process Instruments

miniCHEM-pH with 5 metre dip or screw-in pH & ATC sensors

ORDER ME IN
Product code: MINIP5-1111405

Order Me In, Once ordered this item will likely dispatch before the 06th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

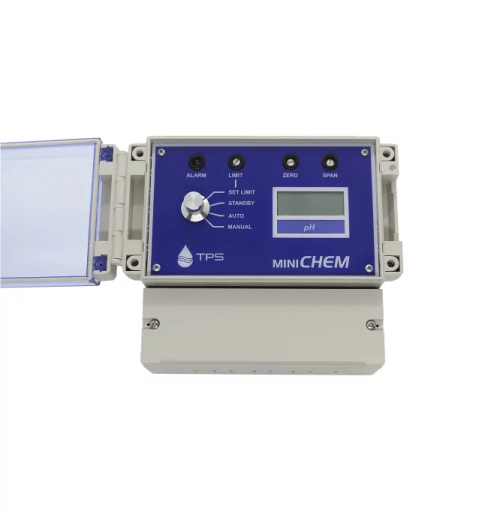

The miniCHEM-pH Controller is an accurate and easy to install process monitor for pH. Built with a waterproof enclosure and current and voltage outputs are provided as standard. The front panel alarm lamp provides clear visual indication when the control limit has been exceeded. ideal for industry, swimming pools, reverse osmosis, aquaculture, and general process monitoring and control. Includes pH and ATC sensors.

Read more | Need help?

$1,490.00 AUD + GST
 $1,639.00 AUD Inc. GST
miniCHEM units are easy to install. The enclosure is waterproof to IP65, so a separate cabinet is not required. All controls can be accessed via the hinged, clear cover. The large LCD display is easy to read, even from a distance.
The included sensors are either the screw-in type or dip type sensors.
miniCHEM units are designed for maximum flexibility. Current and voltage outputs are provided as standard. A relay output is optionally available. The front panel alarm lamp provides clear visual indication when the control limit has been exceeded.
The miniCHEM series is proudly designed and manufactured in Australia. The TPS Quality System has been certified in accordance with AS/NZS ISO9001 standards. You can always be assured of the best quality, service and value for money.

Specifications

- Range: 0 to 14.00 pH
- Resolution: 0.01 pH
- Accuracy: +/-0.01 pH
- Linearity: +/-0.01 pH
- Repeatability: +/-0.01 pH
- Ambient drift: <0.01 pH per 10C change
- Long Term Drift: <0.1% per year
- Temperature Compensation: Automatic, 0 to 100 C
- Zero range: +/-100 mV
- Input Impedance: >3 x 1012 Ohms
- Common Mode Rejection: 120dB
- Enclosure: Polycarbonate, waterproof to IP65
- Display: 12.5mm LCD
- Outputs: 4 to 20 mA (500 Ohms max load)/0 to 1 V DC (0 to 10 V DC optional)/Contacts : One optional relay with changeover contacts. Rated to 240V, 1 Amp
- Isolation: Galvanic isolation of sensor input. Current and voltage outputs are not isolated
- Power: 220/240 V AC, 50/60Hz
- Dimensions: 172 x 160 x 71mm
