Milesight

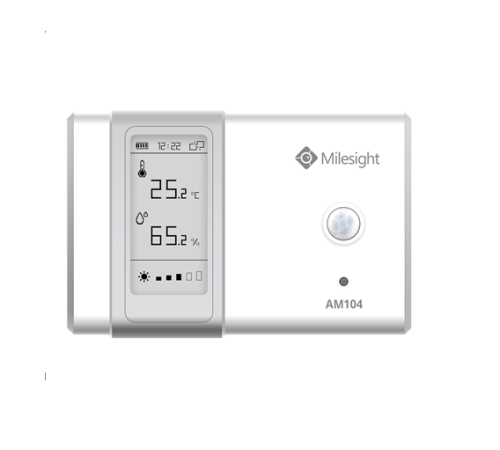

Milesight AM104 - Ambience Monitoring LoRaWAN Sensor

DISCONTINUED
Product code: AM104-915M

Unfortunately, the AM103-915M has been discontinued, check out our other IOT products for more options.

The AM104 is a compact indoor ambience monitoring sensor for measurement of temperature, humidity, light and PIR.

  • Built with visual display via E-ink screen
  • Equipped with NFC and type-C port for easy configuration
  • Compliant with standard LoRaWAN® gateways and network servers

Read more

Note: Requires a Gateway to utilise the IoT Cloud software
The AM104-915M is a compact indoor ambience monitoring sensor for measurement of temperature, humidity, light, and PIR (activity level). These data will be shown on the E-ink screen in real-time, which allow to quantify the indoor environment and comfort.
Apart from screen display, sensor data is also transmitted using LoRaWAN technology. With this low power consumption technology, the AM104 can work for one year with 2 replaceable AA batteries. Combining with Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually.
One critical element in a comprehensive IoT network is the gateway. A gateway is typically considered a robust physical box that acts as an entry point for IoT devices to the cloud. The hardware and rich software inside the box can perform many essential tasks. In relation to the LoRaWAN architecture, the LoRaWAN gateway forms the bridge between the source of data (sensors in the field) and people.
LoRaWAN gateways are a crucial component in running efficient wireless networks for LoRaWAN based sensors.
Our platform provides unparalleled levels of vertical integration with Milesight LoRaWAN sensors and controllers, making it easy to monitor and control remote assets. Plus, It visualizes field data and enables users to monitor and control remote assets via an intuitive dashboard. With its array of handy widgets, including a clock, map, charts, and alarm list, you can easily keep track of your devices' online/offline status and customize multiple combinations of conditions and triggers.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
AM104-915M Features
- Integrated with multiple sensors like humidity, temperature, etc.
- Visual display via E-ink screen
- Uses standard AA batteries; can function for one year without replacing batteries
- Equipped with NFC and type-C port for easy configuration
- Compliant with standard LoRaWAN gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution

Specifications

Frequency
CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power
20dBm
Sensitivity
-137dBm at 300bps
Mode
OTAA/ABP
Power Supply
2x alkaline AA batteries or powered via USB type-C
Battery Lifetime
1.5 years (SF7) / 1.2 years (SF10)
Temperature (Range)
-20C to + 70C (operating temperature for screen: 0-45C)
Temperature (Accuracy)
0.3C (0C 70C), 0.6C (-40C 0C)
Humidity (Range)
0% to 100% RH
Humidity (Accuracy)
3% RH (10% 90%), 5% RH (0% 10%, 90% 100%
PIR (Detection Area)
94 degrees Horizontal, 82 degrees Vertical
PIR (Detection Distance)
5 m
Light (Range)
60000 lux (Visible + IR, IR)
Light (Accuracy)
30%
