MeteoHelix IoT Pro Sigfox Micro Weather Station
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 01st of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

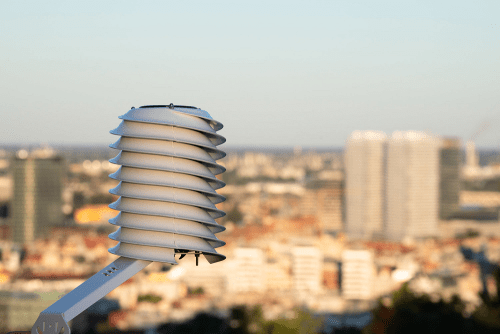

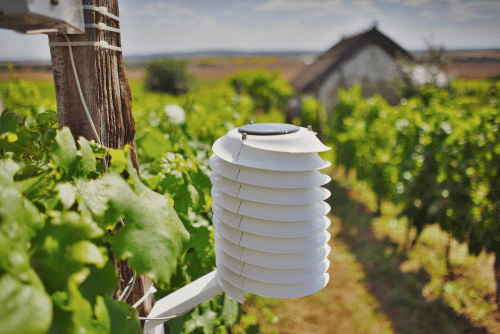

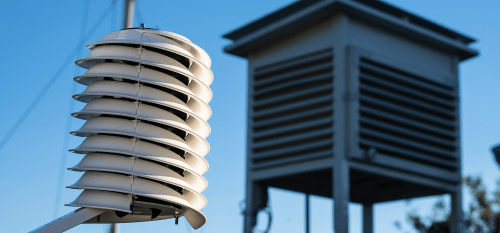

Barani Design's MeteoHelix Pro is an all-in-one, solar powered, wireless micro weather station able to meet quality standards for climatic observations in all weather conditions as set by the World Meteorological Organization (WMO). Simple to install and built for extreme weather conditions. Pre order now, ships in 3-4 weeks.
Regular price
$1,249.00 AUD
+ GST
$1,373.90 AUD Inc. GST
$1,373.90 AUD Inc. GST
Barani Design's MeteoHelix Pro is an all-in-one, solar powered, wireless micro weather station able to meet quality standards for climatic observations in all weather conditions as set by the World Meteorological Organization (WMO). Simple to install and built for extreme weather conditions.
Pre order now, ships in 3-4 weeks. Check your Sigfox coverage here.
Measures:
- Air temperature and humidity
- Dew and frost point
- Solar irradiation (pyranometer)
- Can also measure rainfall if connected to a rain gauge
Features:
- Solar powered with up to 6 months without sun;
- Measurements to World Meteorological Organization (WMO) standards
- Provides accurate measurements in extreme environments
- Patented helical shape offers unsurpassed protection to the internal sensors resulting in unbeatable measurement accuracy, shielding the sensors form
the elements, dirt and water spray.
- Easy calibration procedure: Traceability is assured by a removable sensor tip which is interchangeable and can be easily calibrated with a calibration
adapter or replaced
- Simple installation: requires no wires or installing additional software. Just place the MeteoHelix on its mount, scan the Qr code to activate and access
your data using your phone or computer.
- View and export live weather data: The MeteoHelix Pro include access to the allmeteo.com web portal that enables easy world-wide view of your weather
station data including data export, API data access and live data view. It also offers the ability to manage your fleet of weather stations.
Specifications
Temperature:
- Measurement range: -40 to 105 C
- Resolution: 0.1 C
- Accuracy: +/- 0.2 C (typical)
- Stability: Less than 0.02 C per year
- Operating range: -40 to 105 C
- Response time (5-30 seconds)
- Meets WMO standards: yes
Relative Humidity:
- Measurement range: 0 to 100%RH
- Resolution: 0.2% RH
- Accuracy: +/- 1.8 %RH at 25 C; hysteresis +/- 1 %
- Stability: Less than 0.02 C per year
- Operating range: 0 to 100%RH
- Response time (8-40 seconds)
- Meets WMO standards: yes
Dew point/Frost point:
- Measurement range: -40 to 105 C
- Resolution: 0.1 C
- Accuracy: (calculated)
- Operating range: -40 to 105 C
- Response time (8-40 seconds)
- Meets WMO standards: yes
- Solar Radiation:
Solar Radiation:
- Measurement range: 0 to 1500 watts per square metre
- Resolution: 2 watts per square metre
- Accuracy: 5 % of daily total
- Operating range: -40 to 105 C
- Response time: less than one second
- Meets WMO standards: no
Atmospheric Pressure:
- Measurement range: 300 to 1100 hPa
- Resolution: 0.04 hPa (mbar)
- Accuracy: +/- 1.5hPa at 25 C (7501100 hPa)
- Operating range: 0 to 1300 hPa
- Response time (0.1 seconds)
- Meets WMO standards: no
Others:
- Wireless communication: Sigfox
- Supply voltage: Solar powered with internal Li Ion battery for 6+ months of operation without sun
- Power on/off: Magnetically activated on/off switch located in sensor head
- External connections: 3m cable interface for pulse output rain gauge sensors
- IP Protection rating: IP65W (DIN 40050) Protected from dust and weather
- Dimensions: Diameter = 170mm, Height = 226mm
- Weight (mass): 1.2kg (2.0 kg including stainless steel holder)
